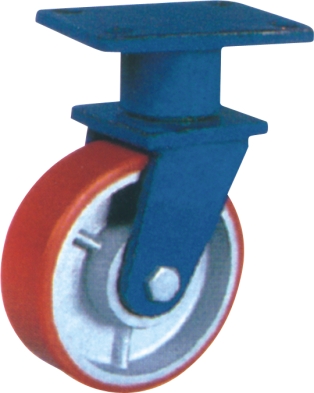

Extra Heavy Duty-pu Cast Iron Wheel
Extra Heavy Duty-pu Cast Iron Wheel, 11S-PU6200-A1Item Code / Model Number:
11S-PU6200-A1
Extra Heavy Duty-pu Cast Iron Wheel
Wheel material:
High grade polyurethane+cast iron core with blue bracket and extended neck
Wheel dia. (mm) 150 /165 /200
Wheel width (mm) 50
Load capacity(kg.) 650 750 1100
Overall size(mm) 225/ 241/ 282
Top plate size(mm) 105X78 105X78 105X78
Hole dia. On top plate(mm) 12.7
Thickness of steel plate reinforced(mm) 6 mm
KingpinĂ˜(mm) 20
Turning radius(mm) 115 130 150
Bearing type Ball bearing
Part No. 11S-PU6200-A1 11S-PU1650-A1 11S-PU8200-A1
Character Used tapered bearing and extended neck, mechamical structure assure move flexibly and protect the load well even if load extra heavy duty. Long life span
High grade polyurethane+cast iron core with blue bracket and extended neck
Wheel dia. (mm) 150 /165 /200
Wheel width (mm) 50
Load capacity(kg.) 650 750 1100
Overall size(mm) 225/ 241/ 282
Top plate size(mm) 105X78 105X78 105X78
Hole dia. On top plate(mm) 12.7
Thickness of steel plate reinforced(mm) 6 mm
KingpinĂ˜(mm) 20
Turning radius(mm) 115 130 150
Bearing type Ball bearing
Part No. 11S-PU6200-A1 11S-PU1650-A1 11S-PU8200-A1
Character Used tapered bearing and extended neck, mechamical structure assure move flexibly and protect the load well even if load extra heavy duty. Long life span
- Place of Origin:
- China
- Brand:
- Kesheng
- Other Price Terms:
- EXW
- Packing:
- the bulk packing in shipping carton then will be packed in wooden pallet if necessary
- Payment Terms:
- T/T;M/T;Cash
- Payment Remarks:
- 30% deposit in advance, 70% balance before shipment
- Delivery Time:
- 25 days
- Min Order Quantity:
- 100pcs
- Keywords:
- caster, casters and wheels, polyurethane caster wheel
