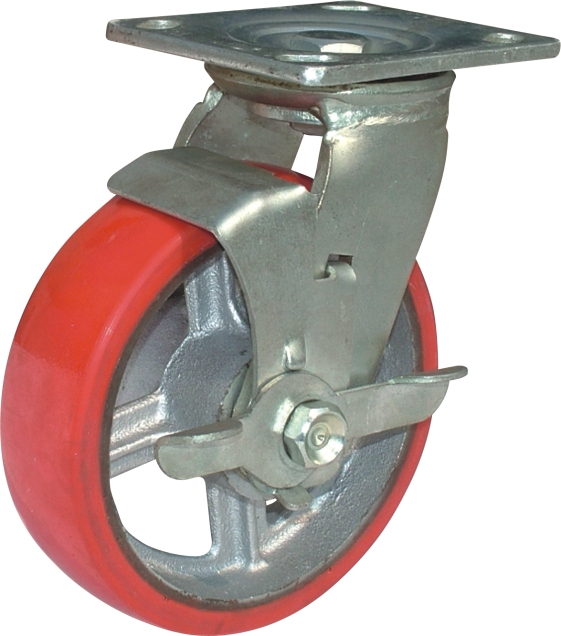

Heavy Duty-pu Cast Iron Wheel
Heavy Duty-pu Cast Iron Wheel, 9B-PU1344-A1Item Code / Model Number:
9B-PU1344-A1
Heavy Duty-pu Cast Iron Wheel
Wheel material polyurethane with cast iron core wheel (side brake type)
Wheel dia. (mm) 100 125 150 200
Wheel width (mm) 50 50 50 50
Load capacity(kg.) 300 420 500 800
Turning radius(mm) 90 108 127 152
Overall size(mm) 143 165 191 241
Top plate size(mm) 84X71 84X71 84X71 84X71
Hole dia. On top plate(mm) 11 11 11 11
Thickness of steel plate reinforced(mm) 6 mm
Part No. 9B-PU1344-A1 9B-PU1444-A1 9B-PU1544-A1 9B-PU8200-A1
Character high elastic ,compression, caustic and acid resistance
Options plain or circle tread is available
Wheel dia. (mm) 100 125 150 200
Wheel width (mm) 50 50 50 50
Load capacity(kg.) 300 420 500 800
Turning radius(mm) 90 108 127 152
Overall size(mm) 143 165 191 241
Top plate size(mm) 84X71 84X71 84X71 84X71
Hole dia. On top plate(mm) 11 11 11 11
Thickness of steel plate reinforced(mm) 6 mm
Part No. 9B-PU1344-A1 9B-PU1444-A1 9B-PU1544-A1 9B-PU8200-A1
Character high elastic ,compression, caustic and acid resistance
Options plain or circle tread is available
- Place of Origin:
- China
- Brand:
- Kesheng
- Other Price Terms:
- EXW
- Packing:
- the bulk packing in shipping carton then will be packed in wooden pallet if necessary
- Payment Terms:
- T/T;M/T;Cash
- Delivery Time:
- 25 days
- Min Order Quantity:
- 100pcs
- Keywords:
- caster, casters and wheels, polyurethane caster wheel
