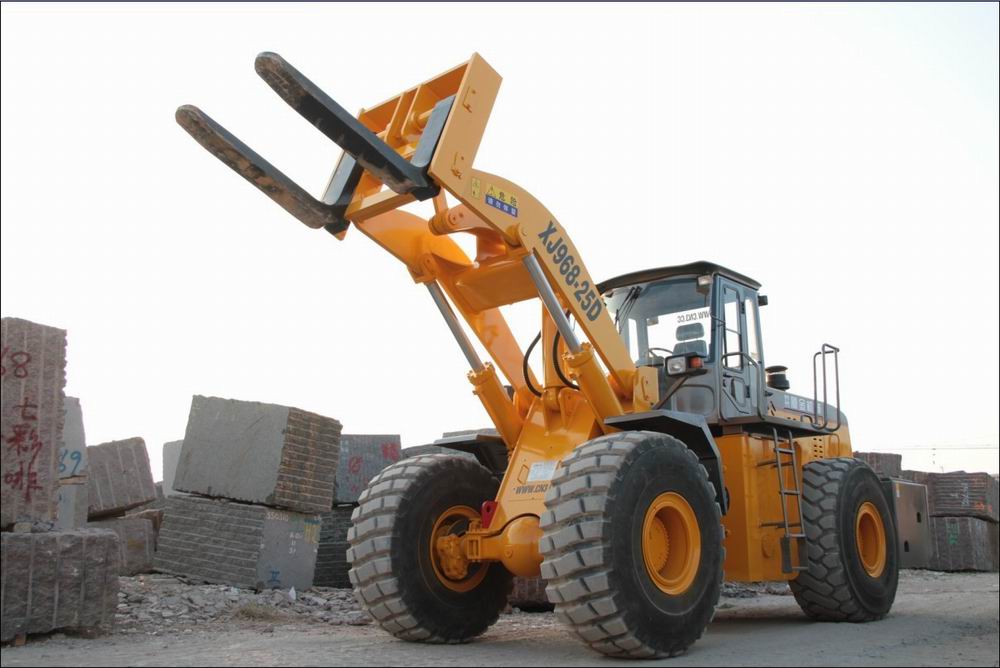

Mining Equipment Xj968-25d(25t)
Mining Equipment Xj968-25d(25t), 84289090Item Code / Model Number:
84289090
Mining Equipment Xj968-25d(25t)
Specifications of XJ968-25D
Description Specifications Unit
Rated power 175 kw/h
Overall dimension（L×W×H） 9000×2990×3650 mm
Max. lifting height Forks at level 3450 mm
Take back forks 3750
Operating weight 30000 kg
Max. Limited Load 25000 kg
Bucket capacity 2.7 m3
Dimensions of fork L×W×H 1400×250×110 mm
Distance of fork ≤1350 mm
Rated loading capacity 25000 kg
Turning angle ±35°
Turning radius 7735 mm
Wheel base 3700 mm
Tread 2300 mm
Min. Ground clearance 430 mm
Unloading angle 18°
Haul location height（Ground clearance of material） 300 mm
Fuel tank capacity 380 L
Hydraulic fuel tank capacity 380 L
Specification of tire Front wheel “Advanced” 3-stars high-load 26.5 steel wire tire
Rear wheel
“Advanced” 26.5 enhanced tires or 2-stars 26.5 steel wire tire
Description Specifications Unit
Rated power 175 kw/h
Overall dimension（L×W×H） 9000×2990×3650 mm
Max. lifting height Forks at level 3450 mm
Take back forks 3750
Operating weight 30000 kg
Max. Limited Load 25000 kg
Bucket capacity 2.7 m3
Dimensions of fork L×W×H 1400×250×110 mm
Distance of fork ≤1350 mm
Rated loading capacity 25000 kg
Turning angle ±35°
Turning radius 7735 mm
Wheel base 3700 mm
Tread 2300 mm
Min. Ground clearance 430 mm
Unloading angle 18°
Haul location height（Ground clearance of material） 300 mm
Fuel tank capacity 380 L
Hydraulic fuel tank capacity 380 L
Specification of tire Front wheel “Advanced” 3-stars high-load 26.5 steel wire tire
Rear wheel
“Advanced” 26.5 enhanced tires or 2-stars 26.5 steel wire tire
- Place of Origin:
- China
- Brand:
- Xiajin Machinery
- Unit Price:
- USD 106000
- Price Terms:
- FOB Xiamen
- Packing:
- packing in one 40âhigh cube container and one 20âGP container with dismantling some parts or by RO-RO ship with whole machine.
- Payment Terms:
- T/T
- Delivery Time:
- 20 days
- Min Order Quantity:
- 1pcs
- Standard / Certificates:
- ISO9001
- Keywords:
- china forklift, forklift loader, wheel loader
