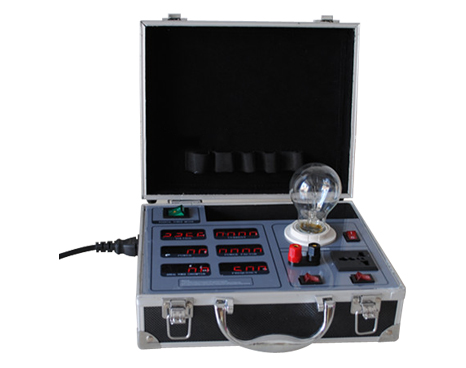

Sell Type2025 LED display&test case

Description：

Function
1. LED T-lamp or traditional T-lamp can be tested through a lightbox line.
2. Parameters for MR16(direct-current power),GU10 and E14can be tested through a adapter.

3. Parameters forE26/ E27 can be tested (voltage, current, power, power factor, annual current consumption)
4. AC voltage display area: Input voltage can be displayed; support international use; voltage ranges from 86~264V. Overseas voltage can be shown for overseas use.
5. AC current display area: Current can be displayed. The measurement for current is accurate to mA. The accuracy is about 1/1000.the measuring range is 4A.
6. AC power display area: Power can be displayed. Power meter is correct to 1 decimal point. So, it can show the change and contrast of power correctly. The ultimate power is 999.9w. If it surpasses 999.9, it will be showed as HHHHH.
7. Power factor display area: LED power factor can be displayed. (PF is a very important parameter for LED; power factor for traditional lamp is 1)
8. Annual power consumption display area: Annual power consumption can be displayed (ten hours power on per day)
9. Frequency display area: The frequency for relative state grid can be showed. Some frequency abroad is 60Hz.
10. One wire clamps (AC output ) and one AC output universal socket. It’s convenient for external power source.
11. One storehouse is for small things; 3 foundation plates are to protect the case.
