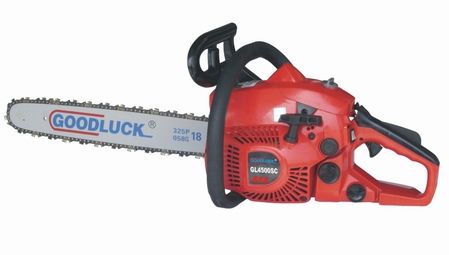

Gasoline Chain Saw

he newly designed structure,
Light weight,ease to operate,
Convenient primer blub assures the engine to be started easier
2-ring piston design with high-torque engine,
Low fuel consumption and low emission,
Nylon front and rear handles,
Spring damper system,low vibration,
Standard bar:(pitch)18"(0.325)
Optional bar:(pitch)16"(0.375)
Bore×Stroke
mm
41.5×32.6

Displacement
cc
44.1

Max.Output
kW(Hp)
1.8(2.4)

External siza(L×W×H)
mm
370×235×270

Chain oil supply system

Auto

Fuel tank capacity
ml
310

Chain oil tank capacity
ml
210

Guide bar
In.(cm)
16,18,(40,45)

Saw chain(Pitch×Gauge)
In.(cm)
Oregon

91VG 3/8×0.050 (9.53×1.27)

21BP 0.325×0.050(8.26×1.47)

Teeth of sprocket

7

Dry weight(without bar and chain)
Kg(lbs)
4.4(9.7)

Fuel mixing rate
90#gasoline:2-cycles special oil(capacity rate),

up to 20hours user 20:1,After use 25:1
