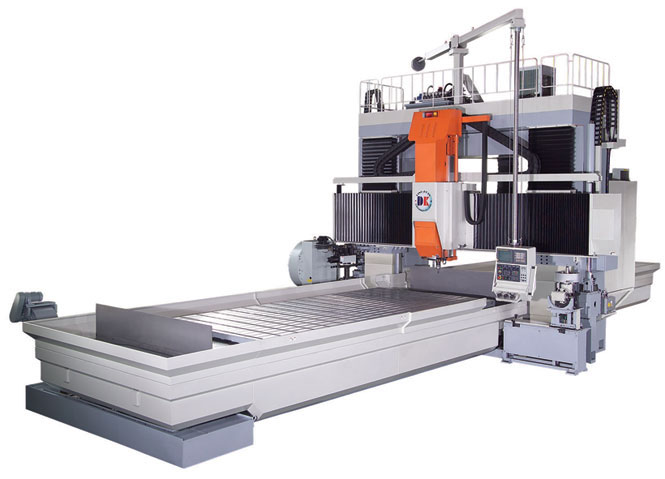

Sell Double Column Crossrail Movable Machine Center (dk) - Ding Koan Sell Double Column Crossrail Movable Machine Center (dk) - Ding Koan
Characteristic of Cross-rail upon-down The cross rail (W axis) could move upon the height of working piece, to increase the efficiency of machining and save the production cost and enlarge the production range. Super machining ability The cross rail could be close to working piece, make sure the shortest extending length of spindle, increasing the performance of machining, and extend the lifetime of tooling. High Flexibility features When ATC equipped, the command of tool change could be executed at any position, and the user have several different choices of ATCnumbers. Strong structure Both cross rail and column were equipped with hydraulic locking system ensure the cross rail and column matched closest, high rigidity and high accuracy.
Cross rail
One-piece iron-casting cross rail, high rigidity structure of - Crossing Rib designed of front part and Box type designed forrearpart.Accompanying bridge type outline, it could support the vertical force of gravity and horizontal resistance, to make sure the best rigidity in machining process.
Y axis
Parallel slide ways designed Y axis,accompanying with both roller and flat type tracker. The linear guide ways keep the sensibility of high-speed moving, and flat type tracker offers higher loading capacity.
Gear box of spindle
1.Square type design, 440 * 440 mm dimension, high rigid structure, minimized the possibility of interference with working piece. Ladder type slide-way make the spindle center most close to the cross rail, increasing the stabilization of machining. 2.Gear box and spindle housing is one-piece iron casting, the short transmission of cutting twist, large output power stable resistance in large cutting offer the best machining performance and lowest noise.
Please visit our website "www.dk-machinery.com.tw" for more information.
