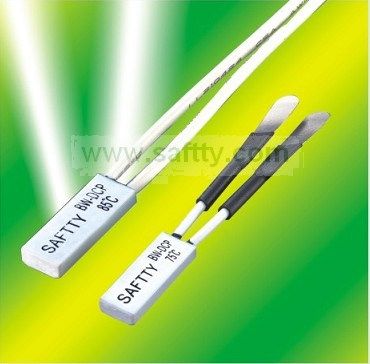

Small Size Bw-d Series Thermal Protector

Application Field:
Be used in
* Battery packs
* Pumps
* Cooling fans
* Heating appliance
* Lighting ballast
The Product Sells Point：
﹡Miniature size
*Positive make and break with snap -action disc
*Suitable for most impregnation processes
*Competitive price

Key Specifications/Special Features ：
1.Dimension case: with leading wire 60mm normally
Plastic:16x5.2x3mm
2.Rated voltage: AC250V/24V (50/60Hz)
3.Rated current: 6A
4.Rated open temperature range: 40~145℃, in steps of 5℃
5.Tolerance: (+/-)5℃
6.Resetting temperature : lower than rated open temperature 30℃(+/-)15℃
7.Switching cycles in: 10,000 cycles
8.Contact arrangement:Normally closed
9.Standard contact resistance:≤50mΩ

Pack Information：
To be informed
Third Party Certificates:
UL, VDE, CQC, ROHS
Product Sample Availability Policy:
Free below 10 pcs samples but transport charged
Order Lead Times(Days):
About two weeks
Minimum Order Quantity:
No
