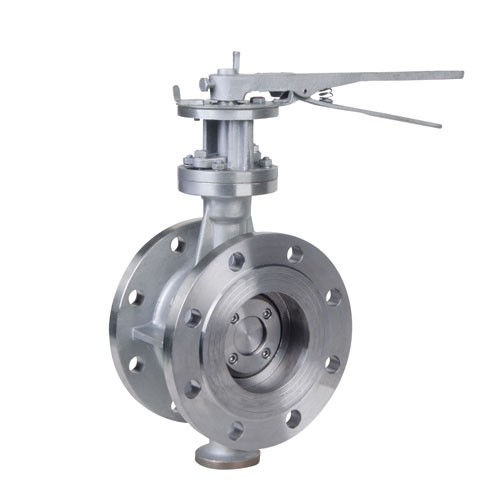

Api Flanged Butterfly Valve

PI Flanged Butterlfy Valve

Specifications
1. Certification: ISO9001, API600, CE, TS
2. Size: 2"-32"
3. Pressure: Class 150LB-1500LB
4. Material: Carbon Steel/Stainless Steel
5. Brand Name: ZMV or OEM
6. Guarantee: 18months
7. Suitable medium: water, oil, gas....

STANDARDS:
Design and Manufacture: API600 ,ASME B 16.34, API6D, BS5351
Inspection and Test: API598
End flange dimension: ASME B16.5 (for NPS≤24); AMSE B16.47 series B
Socket-weld dimension: ASME B16.11
Face to face and end to end: ASME B 16.10
Pressure/temperature rating: ASME B16.34
Materials: LCB, LCC, CF8, CF8M, CF3, CF3M, A105, LF2, F11, F22, F5, F304, F316, F304L, F316L
Operation: Handwheel, Bevel Gear, Pneumatic, Electric
