Pledco Professional Led Display Corporation Ltd

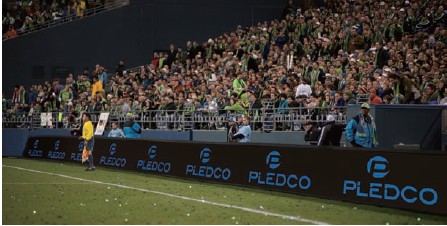

Pledco Broadcast Series Outdoor

Pledco Broadcast Series Outdoor, -PH13,3-CREE-P
Item Code / Model Number:
-PH13,3-CREE-P

Pledco Broadcast Series Outdoor Pledco Broadcast Series Outdoor
Levels of gray & Total colors:Full color ,65536 levels of gray for each color, over 281 billion colors

Frequency of Renewal:60Hz,Over 1000 - 12000 frames/sec standard available, higher refresh rates on demand

Auto Dimmer:Available.

Ingress protection:Display front an back side IP67, Power Supply Unit IP54

rive methode:Static constant current, 16bit

Control communication:Ethernet TCPIP, RS232, RS485, USB, Optional: Optical fiber / 3G / GPRS / Artnet / NTCIP

LED Pixel specification

LED brand brand:Cree packaged by Cotco or Nichia packaged by Nichia

Virtual pixel pitch:8mm



Physical pixel pitch:16mm



LED Size & Configuration:346 1R 1G 1B 346 1R 1G 1B 346 1R 1G 1B 346 1R 1G 1B

Pixel Density: 5625 by Square meter 3906 by Square meter 2500 by Square meter 1402 by Square meter

Total weight per tile:2.7g without power supply, 4kg with power supply

Basic tile size:320mm x 320mm

Brightness:6000cd/m2 at least, higher brightness level available on demand

Brightness control:100 levels manual and 8 levels of automatic brightness control available, light sensor for automatic control available

Viewing angle:110º horizontal / 45º vertical

Control System:

Synchronous or Asynchronous available, depending on project requirement

Basic Cabinet Size:1280mm x 320mm (Custom configuration available)

Total weight:18Kg per cabinet, 45kg per square meter

Cabinet Color:Black, custom color available

Single / Double Face:Single and double face available

Material:Die cast aluminum, Aluminum, Stainless steel

Maintenance:Maintenance from back side, front maintenance available

Electrical and operation specifications

Maximum power consumption / SQM: 350W

Average power consumption / SQM: 117W

Power Required:AC 90V-250V at 47~64HZ

Auto Power On/O:Yes
  • Place of Origin:
  • China
  • Brand:
  • Pledco
  • Unit Price:
  • USD 900
  • Payment Terms:
  • T/T
  • Delivery Time:
  • 30 days
  • Min Order Quantity:
  • 1set
  • Keywords:
  • led display, led screen

Company Profile

  • Business Type:
  • Manufacturer
  • Country:
  • China
  • Established Year:
  • 2009
