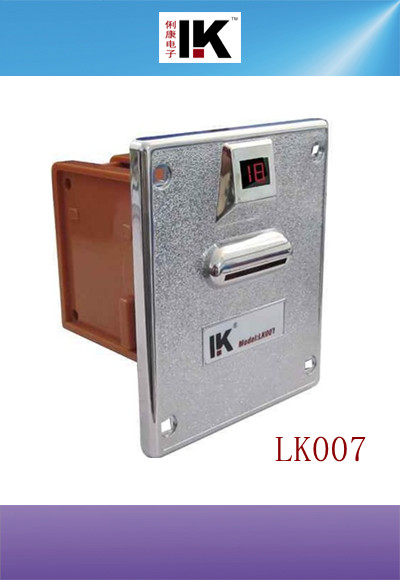

Lk007 Ticket Dispenser

Product parameters:
Voltage: DC+12V+10%
Current: ＜30mA
Ticket width: 29mm
Ticket length: 50mm~120mm
Pulse width: 50ms
Speed of tickets: 250mm/s(about 5PCS)
Package: 20 PCS/ctn
Panel materials: zinc alloy/ plastic
Product type : game accessories/ other accessories & parts

Product Function:
1.CPU Process control and counting precision
2. New structure design, Speed ticket
3.Prevent pulling tickets
4.Digital display, clear
5.Prevent idle running
6. Has a reverse function
7.score / ticket set-up function
8. Mantissa memory(when laying new tickets, the last remaining tickets will automatically outflow, then new tickets begin)

Instruction for use:
1. Adapt to the machine, switch to SW1,to choose OV low level or +5ν high level as the effective output voltage.
2. Adapt to the machine ,choice NO/NC(on/off)switch, for adjusting the ticket to the best site of ticket-out;
3. Put the ticket into the machine, turn on the test button SW3 for adjusting the ticket to the best site of ticket-out;
4. Adapt to the attached list，Choose corresponding scoring and the proportion of the ticket.(1:1 for Factory Settings)
5. Ticket installed, connect the power lines and signal lines can be used
