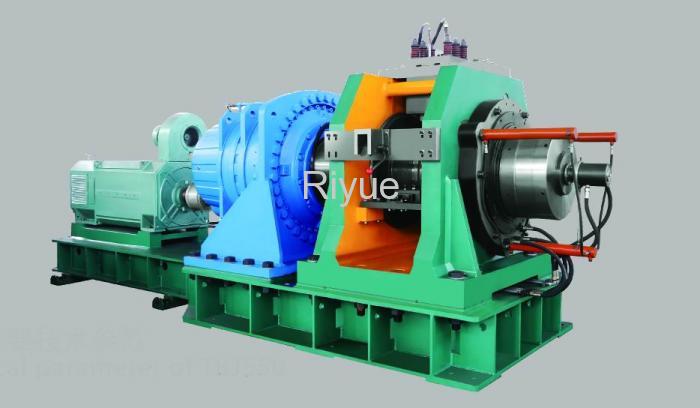

Tbj550-copper Continuous Extrusion Machine

1. Type: TBJ550
2. Composition: straightener, continuous extruder, oxidation preventive cooling system, spooling machine and electrical controlling unit, pay-off stand for copper rods,
3. Nominal diameter of extrusion wheel(mm): 550
4. Power of main motor(kw): DC450
5. Rotating speed of extruder(rpm): 3-8
6. Type of material: no oxygen up-casting copper rod
7. Diameter of wire rod(mm): Ø25±0.20
8. Maximum width of the product(mm): Copper busbar260 copper rodФ120
9. Sectional area of the product: 300-4500mm²
10. Rate of production: 800- 2000kg/h
11. Flash rate: ≤5%
This Copper Continuous Extrusion Machine uses pure copper rod without oxygen produced with pulling method as stock, and different kinds of copper alloy rod. Copper rod cleaning system can not be used when the surface of the copper rod is clean. The stock wire is first given out from pay-off stand, then straightened and sent to the continuous extrusion host machine for extruding. Wire product form after extruding, then pass through oxidation preventive equipment and cooling system, the last step is wrap-up or length fixed cutting after measured by meter counter and other equipment.


Copper continuous extruding production line function: It can be used to produce copper flat wire, copper busbar, commutator, contact wires for electric locomotive and other solid copper material. The products are extensively used to manufacture transformer, big and middle sized motor, high-low voltage switch electric appliance, DC electric commutator and so on.
