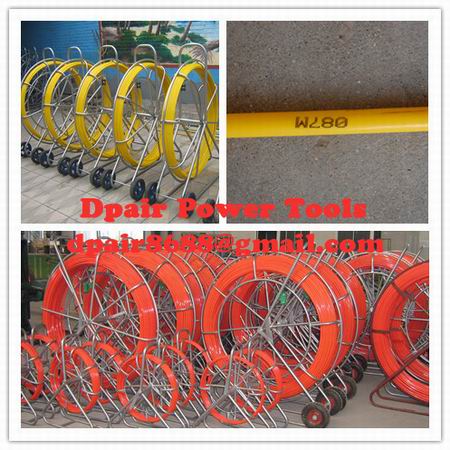

Frp Duct Rod, Fiberglass Rod, Fiberglass Fish Tapes, Fish Tape

Fiberglass duct rodder & fiberglass duct rod & duct rodder cable & conduit rodder & cable rodder
--Bazhou Dpair power tools
description:
Duct Rodders applies in tow lead-rope through a pipe,it is auxiliary means. Surface smooth and high resilience,so the FRP perforator with ease passes the narrow channel. perforator consists of two parts: the glass fiber strengthen the level, the high-pressured low density polyethylene protective layer(smooth, firm ,can resist the adverse circumstance).Duct Rodders has time-saving reducing effort, improving efficiency, etc,And can be used for telecom cables, cable pipe and cleaning and plastic pipe of cloths to put.when use draws out the FPR pole by the pulley, then with a corresponding metal joint, penetrates in the pipeline. When cleaning, guide-head will drive cleaning tools to clean the pipe;When arranges the cable,you may first leads the steel wire or the iron wire, then enters the pipe with the steel wire or the iron wire hauling cable
Fiberglass duct rodder features&benefits:
1. strong non-conductive fiberglass rod construction
2. stainless steel drawing head
3. for longer conduit runs and underground duct
4. Rugged tubular steel reel with adjustable position.
5. Feed device allows rod to feed out or be wound back onto reel with easy pushi or pull of rod.
6. Duct rods/duct rodders have Many applications, not only pulling the cable but also pulling
7. Anticorrosion , good elasticity , long working life.
Fiberglass push pull, Tracing Duct Rods,Duct Rodder--Bazhou Dpair power tools
Specifications
1.Fiberglass hose is lightweight and non-conductive, Because of the extreme flexibility, it can be used as push-pull rodder .
2.Fiberglass push pull,Fiber snake duct rodder,cable rods
3.Fiberglass hose is lightweight and non-conductive, because of the extreme flexibility, it can be used as push-pull rodder in cable installation, and in conduit which makes it very versatile

Glass fiber rod diameter(mm) φ4.5mm/φ6mm/φ8mm/φ9mm/φ10mm/φ11mm/φ12mm/φ13mm/φ14mm/φ16mm
Length(m) 10m-150m
Color Yellow/red/black/blue/green/white
Frame(mm) 650 x 250 x 680, 1000 x 470 x 1140, 1230 x 470 x 1350
Material 75-80% E-glass fiber +High density polyethylene(outer)
Feature Add metal(copper wire, stainless steel wire)in the rod for detectable purpose
Packing Wrapped and then carton box
frp duct rod, Fiberglass rod,Fiberglass rod，Duct Rodder,Fiberglass duct rodder,Duct rod--Bazhou Dpair power tools
