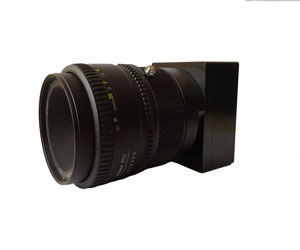

Industrial Inspection Camera/ Ccd Camera

High fidelity color，high resolution, best value, lowest price-performance ratio


Key Features
RGB+B/W qualinear CCD Sensor
B/W：5340 PIXELS；RGB 2670/5340 PIXELS SELECTABLE
CAMERA LINK OUTPUT
HIGH SENSITIVE AND LOW DARK CURRENT
TIME DELAY INTEGRATION

Description
The RS-L05K06-CL Color/Gray cameras is designed for industral application with high fidelity color, high resolutions and lowest price-performance ratio.
The camera can be triggered via an external sync signal or run in an internally controlled "free-run" mode.
The camera has high sensitive and low dark current triline CCD color image sensors and monoline CCD B/W image sensor.
Selectable multiple mode：Color/Gray, TDI, 5340/2670 pixels(for Color mode only), Testing mode
With a single power supply and Camera Link interface, the camera is both easy to use and powerful, offering programmable gains and offsets for each color.


Applications
•High-end industrial inspection
•Print inspection
•Parts inspection or sorting (food, pharma, container...)
•Surface inspection
•Production line item inspection
•OCR and 2-D bar code readin
•Electronic manufacturing inspection
•Postal/parcel sorting
•High performance document scanning/image lift
•Full web inspection








Specifications
RS-L05K06-CL
Sensor Size
5340×3 line for Color
5340×1 line for B/W
Sensor Type Linear CCD
Pixel Size
5.25 µm by 6.825 µm on 5.25 µm centers for Color
5.25 µm by 8.4 µm on 5.25 µm centers for B/W
Pixel Speed(MHz) 35
Max. Line Rate(KHz) >6
Video Output Formats RGB-24bit+GRAY-8 or 10 bits (selectable)
Synchronization Via external trigger or free-run
Exposure Control Models Depend on Line Rate（maximum Exposure）
Power Requirements
max. mW 15 VDC (±10%) 350
Lens Mounts F mount/PK mount
Housing Size(L×W×H) 56mm×66mm×33.8mm
Weight(0.2kg)
Operating Temperature 0°C~+60°C
Storage Temperature -25°C~+85°C
