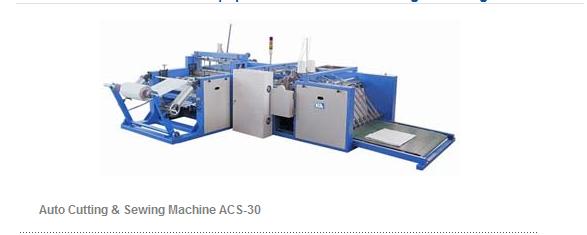

Auto Cutting&sewing Machine Acs-30

The parameters
Model:ACS-30
Denier Range:400-800mm
Die Width:500-1250mm
Working Speed:20-30pcs/min
Main technical characteristics:
Max Fabric Diameter:1200mm(Max)
Fabric width:400-850mm
Cutting length:500-1250mm
Cutting accuracy:± 1.5mm
Botton folded width(Single folded): 20-30mm
Max sewing speed:20-30pcs/min
Sewing machine:Newlong DN-2HS
Stitch Range:5~9mm
Cold cut:1set.
Unwinding motor:1.5kw/ABB VF
Servo motor:0.85kw servo motor
Transfer motor:0.75kw/ABB VF
Sewing motor:1.5kw/ABB AF
Collecting motor:0.18kw/ABB
Dimension(lay-out):5000*3010*1600mm
Weight:1800kg
