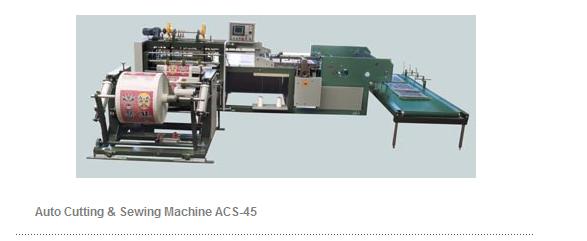

Auto Cutting&sewing Machine Acs-45
Auto Cutting&sewing Machine Acs-45, ACS-45Item Code / Model Number:
ACS-45
Auto Cutting&sewing Machine Acs-45
The parameters
Model:ACS-45
Denier range:1200mm
Die width:300-1300mm
Working speed:40-50pcs/min
Main technical characteristics:
Max Fabric width:800mm
Max Diameter of Fabric : φ800mm
Max.Cutting Speed:40-50pcs/min
Cutting Length:300-1300mm
Cutting Accuracy: ±1.5mm
Max.Sewing Speed:40-50pcs/min
Stitch Range:5-9.5mm
Folding width:20-40mm
Power connection:12.75HP
Machine weigth:About 3.2T
Dimension(lay-out):5880*3880*1360mm
Model:ACS-45
Denier range:1200mm
Die width:300-1300mm
Working speed:40-50pcs/min
Main technical characteristics:
Max Fabric width:800mm
Max Diameter of Fabric : φ800mm
Max.Cutting Speed:40-50pcs/min
Cutting Length:300-1300mm
Cutting Accuracy: ±1.5mm
Max.Sewing Speed:40-50pcs/min
Stitch Range:5-9.5mm
Folding width:20-40mm
Power connection:12.75HP
Machine weigth:About 3.2T
Dimension(lay-out):5880*3880*1360mm
- Payment Terms:
- L/C;T/T
- Keywords:
- auto cutting machine, auto sewing machine
