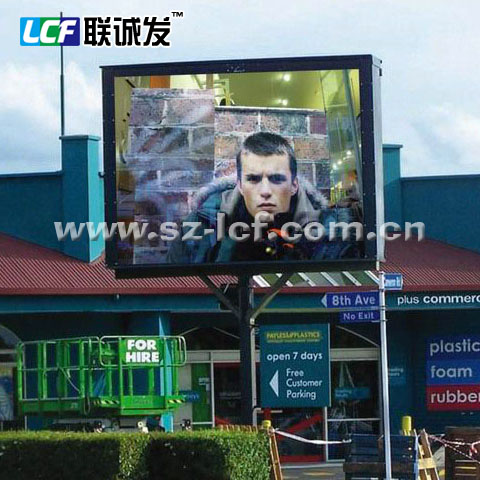

P10 Outdoor Full Color Led Advertising Display Screen

P10 outdoor full color LED advertising display screen

Advantages of our LED display screen
1. High contrast ratio
2. First-level Led chip,CREE,Nicha,Taiwan
3.Clear Vivid image quality displaying
4.Long term brightness
5.Easy installation and programming
6.Convenient servicing
7.RoHS,CE,FCC
Parameter
Pixel Pitch 10 mm Module size 160 mm*160 mm
Pixel composing 1R1G1B Display resolution/module 16 dots*16 dots
Wavelength (R) 625±5 Standard cabinet size 960 mm*960 mm
Wavelength (G) 522±3 Weight per sqm 65 Kg/sqm
Wavelength (B) 567±3 Protection classification IP65
Wave Angle (H) 140°(H)/ 60° Install mode Wallmount, hung and stand structure
LED package DIP 346 Cabinet Material Iron/Aluminum
Density per sqm 10,000 pixel Working power
Display color 256*256*256 Specification Parameter
Whiteness brightness ≥5500 Working voltage AC 220v/380v±10% 47~64Hz
Brightness level 128 grade Max power/sqm 750W/sqm
Changing frame frequency 60 Hz Average power/sqm 400W/sqm
Refresh 400 Hz Short circuit protection Yes
Driving method 1/4 Constant Driving Led Lamp type Nichia/Cotco/Cree/Axt/Silan/Taiwan
Control mode synchronous Working environment
Display port DVI Specification Parameter
Display mode 1024*768 /1024*1024 Environment Outdoor
Out of control 1/10,000 ( scattered) Working temperature --20~50°C
lifetime 100,000 hours Working Humidity 10~90%
