Cwt5005 Gsm Gate Opener

GSM Gate Opener

Advance features
1. Configurable for alarm and recover sms
2. Automatically report the status of itself on schedule
3. Support remote setting via sms commands
4. Preset 10 phone numbers(can be distributed authority)
5. Remote add/edit/delete phone group
6. Automatically update internal clock via sms
7. Time stamped in alarm or recover messages
8. Support ring call when alarm
9. Temperature sensor (optional)
10.Internal battery (optional)
11.Easy used GUI configure software
12.Adopted highly integrated industrial CPU
13.Reliable performance with built-in double watchdog
14.Low maintenance, 24×7 operation

2 digital inputs feature
1. NO or NC type can be preset
2. Configurable for alarm and recover sms
3. Configurable for alarm ensure time
4. Configurable for alarm delay time
5. Configurable for service number’s authority of receive inputs alarm
6. Remote query inputs status

Specifications
DC Power supply: 12-24V DC (Standard adapter: DC 12V/1.5A)
Power consumption: 12V input Max. 150mA/Average 50mA
Frequency range: Quad-frequency 900/1800/850/1900HMz
SIM Card: Supporting 3V SIM Card
Antenna: 50 Ω SMA Antenna interface
Serial: RS232
Temperature range: -30°C ~ +70 °C
Humidity range: Relative humidity 95%

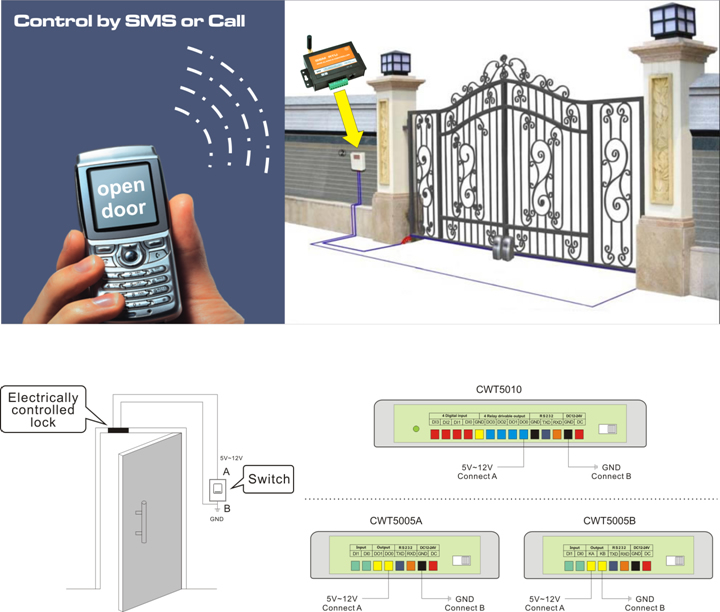

Digital Input: 2 digital inputs(Dry contact)
Output: 2 drivable relay outputs(open-collector outputs)
Output drive voltage: Equal to input DC voltage
Output drive power: Drive voltage ≤35V, drive current ≤500mA
Exterior dimension: 88×60×25mm
Weight: 150 g

GSM Gate Opener
