Gsm Sms Controller

GSM SMS Controller

2DI + 2DO + sms alarm/control (GSM SMS controller)

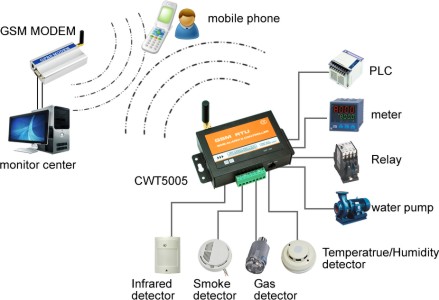

CWT5005 The GSM SMS Controller-Alarm is a very simple device which can be used for authorized door access, controlling gates, switching of remote equipments, car parking systems. Actually the GSM SMS Controller can be used in places which require turning ON/OFF your system, machines, equipments remotely with a SMS text from your mobile phone and protect your assets.


Advance features (GSM SMS controller)


Configurable for alarm and recover sms
Automatically report the status of itself on schedule
Support remote setting via sms commands
Preset 10 phone numbers(can be distributed authority)
Remote add/edit/delete phone group
Automatically update internal clock via sms
Time stamped in alarm or recover messages
Support ring call when alarm
Temperature sensor (optional)
Internal battery (optional)
Easy used GUI configure software
Adopted highly integrated industrial CPU
Reliable performance with built-in double watchdog
Low maintenance, 24*7 operation

2 digital inputs feature (GSM SMS controller)


NO or NC type can be preset
Configurable for alarm and recover sms
Configurable for alarm ensure time
Configurable for alarm delay time
Configurable for service number's authority of receive inputs alarm
Remote query inputs status


2 relay drivable outputs (GSM SMS controller)

Multiple output type can be preset
Remote On/Off/Pulse outputs
Configurable for pulse time
Remote query outputs status
Outputs can be activated by alarm or call
Outputs can be activated on schedule


Standard Package list (GSM SMS controller)
