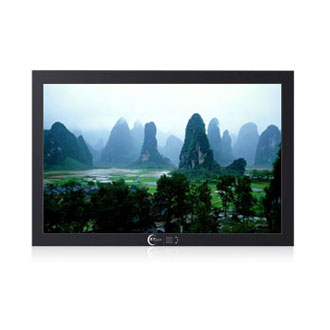

Tft Lcd Monitor
Tft Lcd Monitor, ML42DAItem Code / Model Number:
ML42DA
Tft Lcd Monitor
• Slim, Ultralight, Easy to Use and Aesthetic
• High contrast, high brightness, greatly improving the image layering, better performance details
• With automatic elimination of blur function, protect the LCD screen of the long-term use
• Auto adjust the re-image in the VGA status
•3D digital comb filter and 3D digital image noise reduction technology
• 16.7M colors, the picture is more natural, delicate
• Speed response time, the picture really no tail
• Latest I ² C control circuit, high reliability and good scalability
• Rich docking functions
• Multi-level menu display
• Built-in power supply, low energy consumption, the LCD screen up to 60 thousand hours life
•Black level extension with adaptive features, enhanced image depth layering
•Using anti-jamming metal case, no radiation
Specification
SPECIFICATIONS
Model No. ML42OA
Resolution 1920×1080 WUXGA 10bit
Color Standard Color 1.06 Billion Colors
Max. Color Full Color
LCD Panel Type TFT-LCD
Display Diagonal 42.0″(1067.31mm)
Brightness 650cd/m2
Contrast 3000:1
Response Time 6ms
Viewing Angle 178°
PC Signal Line Frequency 65-70KHz
RGB Input Field Frequency 120Hz
Video Video System PAL/NTSC
CVBS Input/Output 1Vp-p ,75Ω,BNC×2
S-video Input Y:1Vp-p,75Ω C:0.3Vp-p,75Ω
YUV Signal Format 1920×1080P(60Hz) Backward Compatible
Audio Audio Input Optional
Audio Output Optional
VGA 1920×1080P(60Hz) Backward Compatible
DVI null
HDMI 1920×1080P(60Hz) Backward Compatible
Power Supply AC110~240V,50/60Hz
Max. Consumption 220W
Operating Temperature 0℃~40℃
Storage Temperature -20℃~50℃
Relative Humidity 10%~90%
Wall Mount Stand Yes
Remote Control Yes
Cooling System Dual-Fan Cooling
Material Metal
Dimension W987×D120×H580 mm
Weight 27kgs
• High contrast, high brightness, greatly improving the image layering, better performance details
• With automatic elimination of blur function, protect the LCD screen of the long-term use
• Auto adjust the re-image in the VGA status
•3D digital comb filter and 3D digital image noise reduction technology
• 16.7M colors, the picture is more natural, delicate
• Speed response time, the picture really no tail
• Latest I ² C control circuit, high reliability and good scalability
• Rich docking functions
• Multi-level menu display
• Built-in power supply, low energy consumption, the LCD screen up to 60 thousand hours life
•Black level extension with adaptive features, enhanced image depth layering
•Using anti-jamming metal case, no radiation
Specification
SPECIFICATIONS
Model No. ML42OA
Resolution 1920×1080 WUXGA 10bit
Color Standard Color 1.06 Billion Colors
Max. Color Full Color
LCD Panel Type TFT-LCD
Display Diagonal 42.0″(1067.31mm)
Brightness 650cd/m2
Contrast 3000:1
Response Time 6ms
Viewing Angle 178°
PC Signal Line Frequency 65-70KHz
RGB Input Field Frequency 120Hz
Video Video System PAL/NTSC
CVBS Input/Output 1Vp-p ,75Ω,BNC×2
S-video Input Y:1Vp-p,75Ω C:0.3Vp-p,75Ω
YUV Signal Format 1920×1080P(60Hz) Backward Compatible
Audio Audio Input Optional
Audio Output Optional
VGA 1920×1080P(60Hz) Backward Compatible
DVI null
HDMI 1920×1080P(60Hz) Backward Compatible
Power Supply AC110~240V,50/60Hz
Max. Consumption 220W
Operating Temperature 0℃~40℃
Storage Temperature -20℃~50℃
Relative Humidity 10%~90%
Wall Mount Stand Yes
Remote Control Yes
Cooling System Dual-Fan Cooling
Material Metal
Dimension W987×D120×H580 mm
Weight 27kgs
