Sell Hy-ab500 Gravity Die Casting Machine

Sell Hy-ab500 Gravity Die Casting Machine , HY-AB500
Item Code / Model Number:
HY-AB500

Sell Hy-ab500 Gravity Die Casting Machine Sell Hy-ab500 Gravity Die Casting Machine

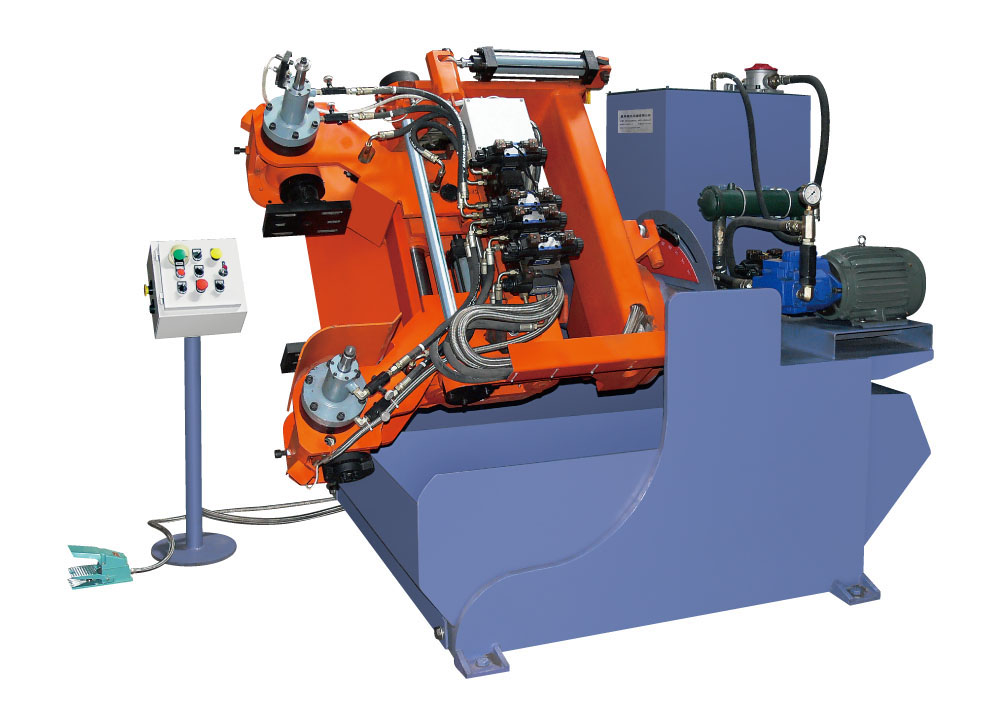

HY-AB500 Gravity Die Casting Machinery
Main Specifications and Technical Parameters
Maximum Outlined Diameter of Mold ǿ500mm
Maximum Weight of Mold 150kg
Maximum distance of mold base plate 510mm
Maximum clamping stroke 270mm
Angle range of measured-cast 0°-90°
Angle range of mold immersion 0°-110°
Angle range of mold immersion 0°-90°
Oil Pressure 50-70bar
Power capacity 3.75+0.75+0.75w
Three phase power 380V/50HZ(per customers requirement)
Oil tank capacity 220L
Volume of mold immersion tank 375L+375L
Net weight of the Equipment 2000kg
Maximum dimension of the equipment 1650*2300*1720mm
  • Place of Origin:
  • Fujian, China
  • Brand:
  • Hongyunmach
  • Unit Price:
  • USD 22800.00
  • Price Terms:
  • FOB Xiamen, Port
  • Packing:
  • wooden pallets
  • Payment Terms:
  • L/C;T/T
  • Delivery Time:
  • 30 days
  • Min Order Quantity:
  • 1pc
  • Keywords:
  • die casting machines, casting machine
