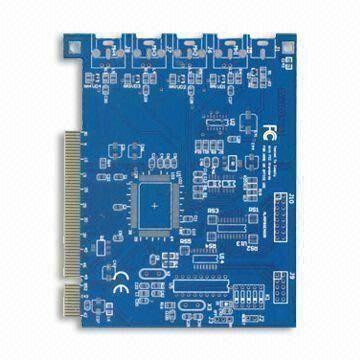

Multi-layered Pcb Circuit Board
Multi-layered Pcb Circuit Board, pcb boardItem Code / Model Number:
pcb board
Multi-layered Pcb Circuit Board
Base material: FR-4
Number of layers: four
Finished board thickness: 1.6mm
Copper thickness: 1oz
Minimum hole diameter: 0.2mm
Minimum line width: 0.2mm
Minimum line spacing: 0.2mm
Hole copper thickness: 35um
Surface finish: lead-free HASL
Solder mask: blue
Manufacture capability
Item: manufacture capability
Layers 1 to 16 layers
Materials: FR-4, aluminum base and Rogers
Finish board thickness: 0.2 to 3.2mm (8 to 126 mils)
External copper thickness: 35 to 210um
Internal copper thickness: 17 to 140um
Copper plating hole: 18 to 40um
Minimum trace width and line spacing: 0.075/0.1mm (3/4 mils)
Minimum hole dimension (CNC): 0.20mm (8 mils)
Minimum hole dimension (punching): 0.9mm (35 mils)
Maximum panel dimension: 610 x 508mm
Hole position tolerance (CNC): ±0.075mm
Hole dimension tolerance (CNC):
Number of layers: four
Finished board thickness: 1.6mm
Copper thickness: 1oz
Minimum hole diameter: 0.2mm
Minimum line width: 0.2mm
Minimum line spacing: 0.2mm
Hole copper thickness: 35um
Surface finish: lead-free HASL
Solder mask: blue
Manufacture capability
Item: manufacture capability
Layers 1 to 16 layers
Materials: FR-4, aluminum base and Rogers
Finish board thickness: 0.2 to 3.2mm (8 to 126 mils)
External copper thickness: 35 to 210um
Internal copper thickness: 17 to 140um
Copper plating hole: 18 to 40um
Minimum trace width and line spacing: 0.075/0.1mm (3/4 mils)
Minimum hole dimension (CNC): 0.20mm (8 mils)
Minimum hole dimension (punching): 0.9mm (35 mils)
Maximum panel dimension: 610 x 508mm
Hole position tolerance (CNC): ±0.075mm
Hole dimension tolerance (CNC):
- Place of Origin:
- China
- Brand:
- Upp
- Unit Price:
- USD 0.59
- Price Terms:
- FOB Shenzhen
- Packing:
- vocumn and carton
- Payment Terms:
- L/C;T/T;Cash
- Keywords:
- pcb, pcb board, circuit board
