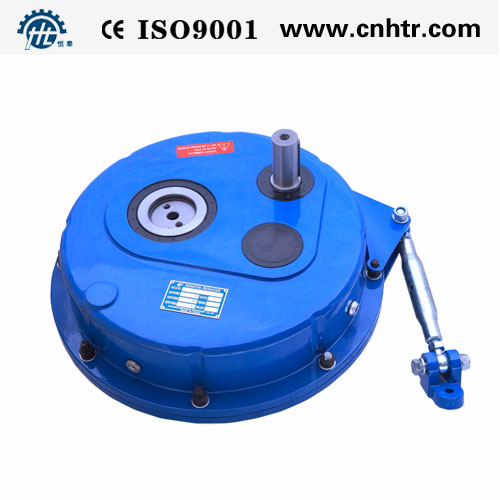

HXG series shaft mounted gear reducer

Product Name:
HXG30-125
Description:
Gearing Arrangement: Helical
Output Torque 180Nm-17000Nm
Rated Power 1.1-193KW
Input Speed 750-1500RPM
Output Speed 25-300RPM
Model Number HXG30-HXG125
Ratio 5-31
Color Accordingly
Mounting position Shaft mounted
Material for box Cast iron

Design characteristics:

1:Use low-carbon alloyed steel cementation processing completely.

2:The gear and the gear shft precision is high.

3:The volume small,but the torque is big.
Specification:
Detailed Product Description

1.The sturdy and weather-resistant product for the material handling industry.
2.Best seller for the quarry and mine apply.
Safety Approval:
ISO9001,CE
Other Description:
Permitted torque:

Model HXG30 HXG35 HXG40 HXG45 HXG50 HXG60 HXG70 HXG80 HXG100
permitted torque 180Nm 420Nm 950Nm 1400Nm 2300Nm 3600Nm 5100Nm 7000Nm 11000Nm

Maintence:
After 300-hour operation, please change the oil, and flush the gear uint with suitable detergents.
Pls do not mix the mineral oil and synthetic oil.
pls check the oil level in regular time.

Storage:
1:Pls do not store in outdoor.
2:pls put cardboard, wood or other material between the products and floor. the gear box cannot directly touch the floor.
