Rgb Pixel Light Series

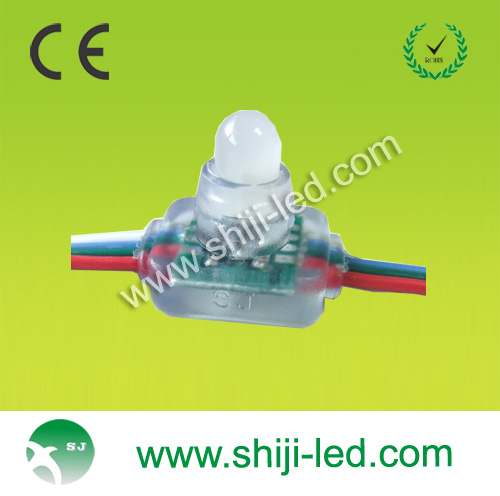

RGB Pixels are digitally-controllable lights you can set to any color, or animate

Each RGB LED and controller chip is molded into a 'dot' of silicone.

The dots are waterproof and rugged.

There are four flanges molded in so that you can 'push' them

into a 12mm drill hole in any material up to 1.5mm/0.06" thick

They're typically used to make outdoor signs. Compared to our other 20mm LED dots

these are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.

The pixels are connected by a 4-conductor cable. Red is +5V,White is Ground, Green is Data and Blue is Clock

Data is shifted down from one pixel to the next so that you can easily

cut the strand or attach more onto the end.

Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15-bit color for 32,768 different shades). The pixels must be clocked by a microcontroller。

The pixels use 8mm diffused RGB LEDs

with brightness of about 300 mcd per individual r/g/b LED.
