Zhengzhou Hongliang Cable Company

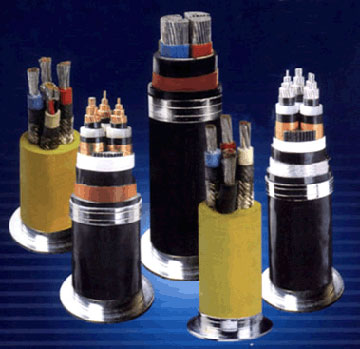

Copper Conductor PVC Insulated Power Cable

Copper Conductor PVC Insulated Power Cable
Continuous Selling Item

Copper Conductor PVC Insulated Power Cable Copper Conductor PVC Insulated Power Cable
Copper Cable with heap price XLPE or PVC Insulated

1, Standard and Scope of Application:

The PVC insulated power adopts GB (China National Standard)and IEC standard, and is used as power distribution and transmission line system with 6KV and below.

2, Specific Property for Using

1) The allowed long-time working temperature of conducting core should not exceed 70°C

2) When short-circuit (Max 5s), the highest working temperature of cable conductor should not exceed 165°C
3) While laying the cable, the ambient temperature should not be lower than 0°C and the bending radius should not be less than 10 times of outer diameter of cable.

4) With good chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardant.

5) With light weight, perfect bending properties, stalled and maintained easily and conveniently.

YJV, YJLV
Copper(aluminum)conductor, XLPE insulated and PVC sheathed cable
For laying indoors, in tunnel or pipe, unable to bear external mechanical force

YJY ,YJLY
Copper(aluminum)conductor, XLPE insulated and PE sheathed cable

YJV22, YJLV22
Copper(aluminum)conductor, XLPE insulated, steel tape armored and PVC sheathed cable
For laying indoors, in tunnel, cable trench, or direct in ground, can bear external mechanical force ,while unable to bear large tension

YJV23 ,YJLV23
Copper(aluminum)conductor, XLPE insulated, steel tape armored and PE sheathed cable

YJV32 ,YJV42 YJLV32 ,YJLV42
Copper(aluminum)conductor, XLPE insulated, thin(thick)steel wire armored and PVC sheathed cable
For laying in high drop area ,can bear external mechanical force and certain tension

YJV33 ,YJV43 YJLV33 ,YJLV43
Copper(aluminum)conductor, XLPE insulated, thin(thick) steel wire armored and PE sheathed cable
  • Place of Origin:
  • Zhengzhou China
  • Brand:
  • Hongliang
  • Unit Price:
  • USD 1.2-89
  • Port:
  • FOB Qingdai, Tianjin
  • Other Price Terms:
  • or as your request
  • Packing:
  • Wooden drum, Iron wooden drum , Iron drum, Steel Drum or according to your requirement Drum size: 1100*1000*800mm; 2200*1100*800mm; the size wsas design cable's diameter
  • Payment Terms:
  • L/C;D/A;T/T;M/T;D/D;Cash;D/P
  • Delivery Time:
  • within 25days
  • Min Order Quantity:
  • 300meter
  • Standard / Certificates:
  • ISO, CCC

Company Profile

  • Business Type:
  • Manufacturer
  • Country:
  • China
  • Employee Count:
  • 360
  • Established Year:
  • 1988
  • Yearly Sales Volume:
  • US$10M - US$30M

Contact Information

  • Company Name:
  • Zhengzhou Hongliang Cable Company
  • Country:
  • China
  • Address:
  • No.11, Zhengshang Road, Zhengzhou City, Henan Province, China
  • Website:
  • http://www.sale-cable.com
