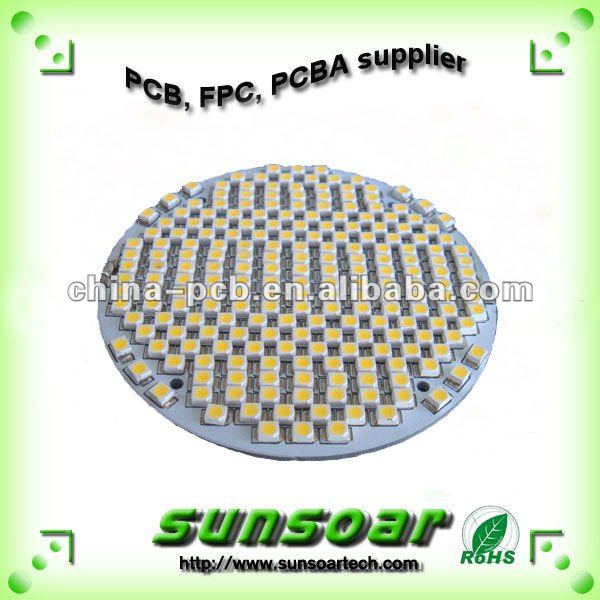

5050 Rgb Led Pcb, Aluminum Pcb Smt Led

Our supply ability about PCB
*Layers:1-30layers
*Min.Hole Size:0.2mm
*Min.Line spacing:0.075mm
*Min.Line Width:0.075mm
*Copper Thickness:0.5oz-5oz
*Board Thickness:0.2mm-1.6mm
*Base Material:FR-4 CEM-1, 94HB, 94VO,High TG, Rogers,F4B, Aluminum
*Surface finished:Immersion Gold/Tin HASL OSP lead free HASL,Gold plating
*Solder mask color: green/yellow/black/white/red/blue
*Shape tolerance: ±0.13
*Certificate: UL, RoHS,ISO9001
*Special requirements: Buried and blind vias/ controlled impedance /BGA
*Profiling: Punching, Routing, V-CUT, Beveling

Aluminum PCB is one of metal-based PCB, including copper foil layer, thermal insulating layer and metal substrate layer three parts. Copper foil layer is requested for strong current capacity, therefor it should be used for thick copper foil. Thermal insulating layer is the key of aluminum PCB, which is made from special polymer filled with special ceramics. The aluminum PCB is finished by gold plating, tin coating, OSP-anodizing, gold depositing and non-lead ROHS process. It features thin thermal-insulating layer, low heat resistance, non-magnetic, good radiating and mechanical performances.
Now the aluminum PCB is widely used in many fields such as power modules, audio amplifiers, LED, motor drivers etc. As an advocate to promote energy-saving lamps and colorful energy-saving LED lights which are very popular by the market, while the aluminum PCBs used in LED lights have begun a large-scale applications.

Yuzhixiang Electrons Co.LTD have provided the high quality and competitve cost aluminum PCBs, aluminum-base PCBs and other metal-base PCBs. Please contact us if you have any inquires.

Contact: Ms sabrina-----sales02(at)sunsoartech(dot)com
