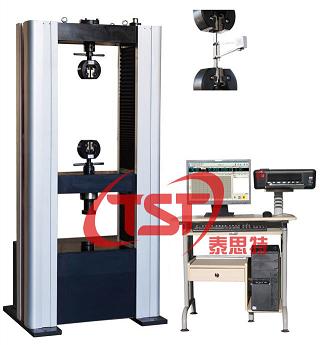

Computer Control Electronic Universal Tensile Strength Testing Machine

Applications & Functions:

Computer Control Electronic Universal Testing Machines are suitable for tensile, compression, bending and other test for metal and non-metal material for example steel, aluminum, copper, geotextile, plastic, rubber, thread, wood, alloy, PVC, spring , electrical wire and cable, composite, profiled bar, waterproof roll, etc. They are essential testing instruments for quality testing section, university and college, research institution and industrial and mining enterprise. The machine is calibrated as ASTM E4, ISO 75001 international standard.
Control software can automatically finger out routine data, such as tensile strength, yield strength, modulus of elasticity, extend rate after rupture, non-proportional extend strength RP0.2, etc. It can real time display many testing curves of load-displacement, load-time, and so on. These curves automatically switch. Testing process control and data processing conform to the requirements of all kinds of test standard. It has high stability as well as high precision, equipped with PC system & printer for graph, test result display, printing & data processing.

Standards:
ASTM E4, ASTM E9, ISO6892, ISO7438, ISO75000-1, EN10002-4, GB/T228-2002, etc.

Model WDW-100
Host Machine Structure Floor model with double space
Max Load Capacity 100kN
Load Amplification x1, x2, x5, x10 four scales
(Auto Range) or no range
Class of Machine 1.0
Load Range 2%-100%FS(0.4%-100%FS optional)
Load Accuracy Within ±1.0% of indicating load
Load Resolution 1/200000
Range of Deformation 4%-100%FS
Accuracy of Deformation Error less than ±1.0%
Accuracy of Displacement Within ±1% of indicating load
Resolution of Displacement 0.01mm
Range of Testing Speed 0.005mm/min - 500mm/min,
stepless arbitrary setting
Accuracy of Testing Speed Error less than ±0.5%
Max Effective Tensile Space(mm)
(Max Crossbeam Stroke) 500-600
Working environment Room temperature 10°C-30°C,
relative humidity≤80%
Power Supply 1.5kW
1-phase
220V,50Hz
(Or specified by users)
Dimensions of Host Machine
(L*W*H) (mm) 980×650×2050
Net Weight(KG) 700
