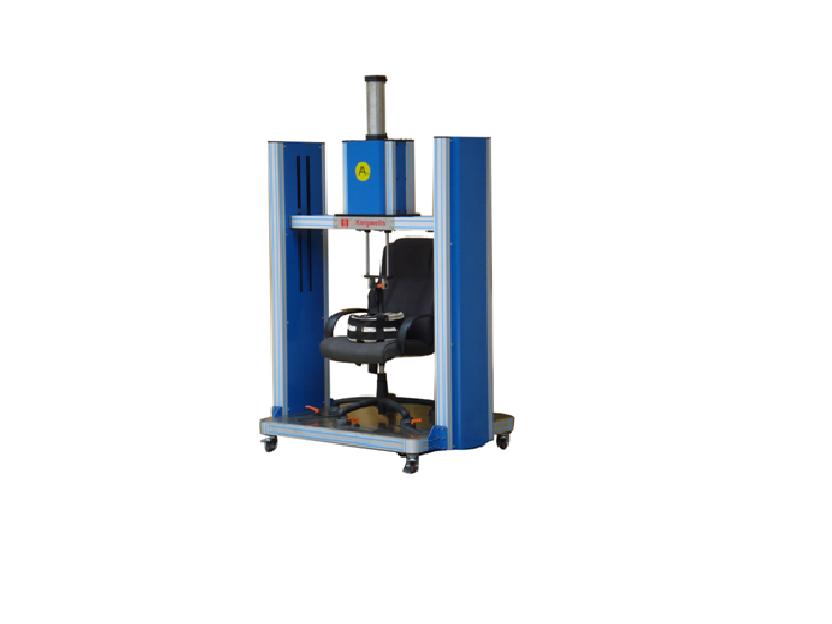

Kw-bfm-11 Seating Tester

Field of application:
ANSI/BIFMA X5.1-2011 8 Drop Test - Dynamic
ANSI/BIFMA X5.1-2011 11.3 Impact Test
ANSI/BIFMA X5.4-2005 13 Seating Durability Tests Cyclic
ANSI/BIFMA X5.4-2005 24 Tablet Arm Load Test Static
ANSI/BIFMA X5.5-2008 6 Top Load Ease Cycle Test
ANSI/BIFMA X5.6-2010 10.1 Work Surface Durability (Top Load Ease) Test
ANSI/BIFMA X5.9-2004 7.1 Top Load Ease Test Cyclic
ANSI/BIFMA X5.9-2004 7.2 Drop Test Dynamic for Units with Seat Surfaces
ANSI/BIFMA X5.9-2004 7.3 Durability Test for Units with Seating Surfaces Cyclic Impact
EN 1730: 2000 6.6 Vertical Impact test
EN 1728: 2001 6.15 Seat impact test

Working Rationale:
Abuse way to sit on the seat in order to test the durability of product.
Structure characteristics:
1 Multi-function: A Free Fall; B Load Ease; C Manual-operation impact.
2 AL-Frame, stainless steel testing platform, Good style.;
3 Electromagnetic absorb and release, completed imitate free drop, no resistance, and low noice.
4 Hydraulic buffer structure, Greatly reduce the noice of impact.;
5 Foot-cup fixing fixture, free force in the Vertical direction...
6 Easy operation, no need any special tooling.
7 Power failure memory.
8 More control mode for selection.

Parameter:
Max impact height: 250mm
Impact rate: 5-15 time/min
Sample limited: Max height 1000 mm; Max Width1200mm;
Max impact weight: Not less than 350lbs (Request AP≥ 0.5MPa)

Control System:
1. Individual control box, with the breakpoint detection stop function;
2. Six digits LCD, Stop / off memory function;
3. Power height adjustment.
4. Action Control: Electromagnet will absorb the loading when get electricity in low, Air cylinder drive the loading to the height. Electromagnet will release the loading once lose the electricity.
5. Hydraulic buffer structure, Greatly reduce the noice of impact.
