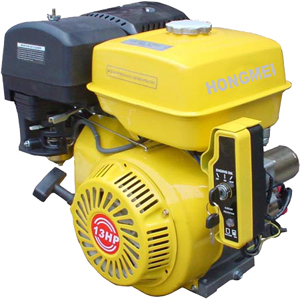

13hp 188fd Gasoline Engine
13hp 188fd Gasoline Engine
13hp 188fd Gasoline Engine
gasoline engine
Model 188FD
Engine Type OHV25° Tilt,single cylinder,air cooling,4-stroke
Engine Torque 26.5N/2500RPM
Engine power 7.5KW/3600RPM
BORE×STROKE 88×64MM
COMPRESSION RATIO 8.0:1
Displacement 389ML
Fuel consumption ≤374g/kw.h
Lubrication Type Splashing
Ignition System Induction Ignition
Starting System recoil start/electric start
Fuel Tank Capacity 6.5L
Oil Capacity 1.1L
N.W 34KG
G.W 35KG
Dimension 490*450*535mm
Model 188FD
Engine Type OHV25° Tilt,single cylinder,air cooling,4-stroke
Engine Torque 26.5N/2500RPM
Engine power 7.5KW/3600RPM
BORE×STROKE 88×64MM
COMPRESSION RATIO 8.0:1
Displacement 389ML
Fuel consumption ≤374g/kw.h
Lubrication Type Splashing
Ignition System Induction Ignition
Starting System recoil start/electric start
Fuel Tank Capacity 6.5L
Oil Capacity 1.1L
N.W 34KG
G.W 35KG
Dimension 490*450*535mm
- Place of Origin:
- Chongqing, China
- Brand:
- Hongmei
- Port:
- FOB Chongqing, China
- Other Price Terms:
- FOB SHANGHAI OR CIF
- Packing:
- 1UNIT PER CARTON
- Payment Terms:
- L/C;T/T
- Delivery Time:
- within 15
- Min Order Quantity:
- 50units
- Standard / Certificates:
- CE,ISO9001-2000
