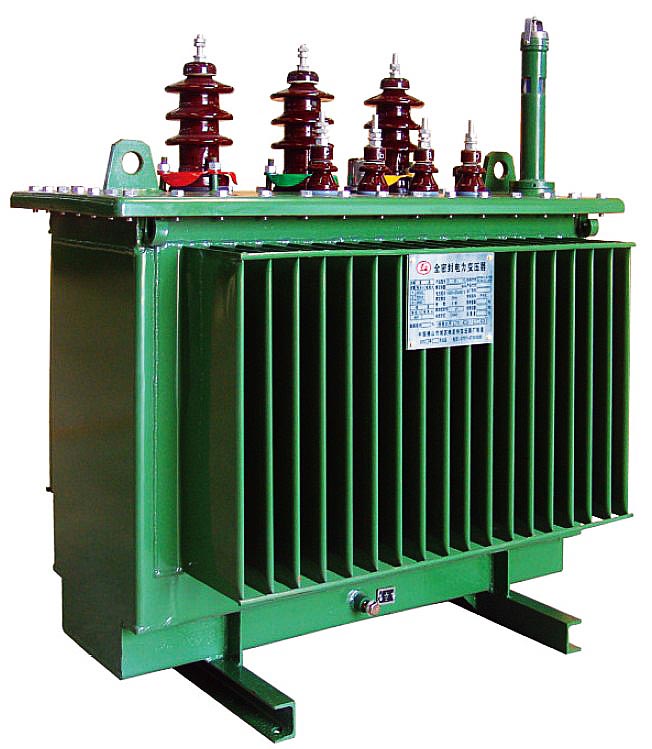

Sh15-m-1600kva Oil-immersed Distribution TransformerSh15-m-1600kva Oil-immersed Distribution Transformer , SH15-M-1600kVA
Product Name Oil-immersed Distribution Transformer
(Amorphous Alloy Iron Core Fully Sealed)
Rated Capacity kVA 1600
Rated High Voltage kV 6 / 6.3 / 10 / 10.5 / 11 / 20
High Volt. Tap Range ±5%, ±2x2.5%
Rated Low Voltage kV 0.4
Phase Number PH Three
Vector Group Dyn11
No-load Loss W 630
Loading Loss W 14500
No-load Current % 0.20
Short-circuit impedance % 4.5
Oil Weight kg 860
Weight kg 3830
Base Gauge (Horizontal*Vertical) mm 820*820
Overall Dimension mm L2120 * W1240 * H1560
Price Term: FOB or others for choose
Payment Term: T/T 50% for deposits and 50% for balance before delivery
Port of Dispatch: Guangzhou, Guangdong, China
Packaging: Wooden carton
Warranty: 1 year
Inspection: in house
Sample: Not Available
Minumum Order Quantity: 1 set
1) The oil-immersed transformer has good insulation performance, flexible and reliable. It can be made a variety of special-type transformers.
2) It is advanced design and reasonable structure. Also, it is small size, light weight, easy installation, and good economic performance.
3) It is strong ability over charging, low loss, low temperature rise, and low noise,
4) There is reliable shell.It can be run under harsh environment.
5) Using new type machine structure, there are high mechanical strength and strong sudden short-circuit bearing capability.
6) Good insulation and high level impacting lightning surge,
7) Fully Sealed Product, no oil conservator, lowers than similar product. It is used vacuum impregnating oil techniques, fully take off the humidity in oil box. It is non-contact with Oil and air completely. It is no need to do oil sample test regularly.
1) outside or inside,
2) The altitude of installation site can not be over 1000M, the altitude of high pressure model installation site can not be over 4000m,
3) Environment temperature between +40~-30 degrees,
4) Relative humidity 95%,
5) The product will be design according to customer's requirements when it is used in non-normal condition.
"Foshan Chan Xing Te Transformer Co.,Ltd. was established in 1988,and is a professional factory for making transformer with machinery industry department in China.Our company has got through ISO9001 quality management system.Our products are recommended to the power grid construction and transformation.
Oil-filled transformers and dry type transformers are classical products,which have been passed the inspection of Chinese Transformer Quality Inspection Center.There are good evaluations for our transformers with Quality Inspection Department.Our factory has got many certificates from National department,such as ""China Quality Credit Enterprise AAA+class"", ""Ten Quality Brand"" in transformer, ""China Quality First 500"",and more.
35kv and below,S9 series,S9-M series,SZ9 series,S11 series,S11-M series,SZ11 series,S11-MR series,S13 series and SH15 series Amorphous alloy oil-immersed power transformers,35kv and below,SC9,SCB9,SC10,SCB10,SC11,SCB11 (capability from 30~2500KVA)series epoxy resin casting dry insulation transformers,SGB10,SGB11 and H level insulation dry power transformers (American DuPont NOMEX cardboard insulation structure). Except these,we also produce voltage regulators,electric reactors,YB series American boxes changed,YBP-12/0.4 Series Prefabricated Substation and all kinds of special transformers.
Since 1988 Foshan ChanXingTe Transformer Co., Ltd. has 24 years of experiences producing high power oil-immersed and dry-type distribution transformers at capacities of 30kVA to 31.5MVA at our 30,000sqm workshop with ISO9001:2000 certifications be recommended to the power grid construction and transformation at our country.
