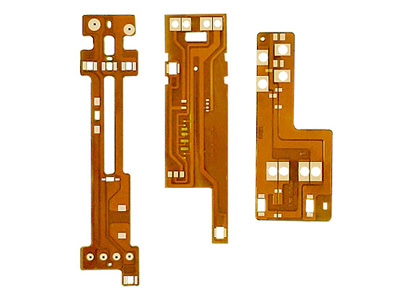

Flexible Pcb
Flexible PcbItem Code / Model Number:
Flexible Pcb
Follow Dreams Technology make 1 layer to 30 layers PCB and offer PCBA&OEM servic. We also offer Flexible PCB and Aluminum PCB. Below is our Flexible PCB.
Technical parameter as follow.
Flexible PCB
Layers: 1-6 Layers
Min. Line Width: 0.05mm
Min. Hole Size: 0.15mm PTH
Min. PTH Hole Ring: 0.45mm
Min. Gap between Cover Layer and Pad: 0.1mm
Min. Gap between Trace and Outline: 0.2mm
Trace Width Tolerance: +/-0.03mm, W+/-30%
Outline Tolerance: +/-0.05mm L≤ 25mm
Hole Size Tolerance: +/-0.05mm
Stiffener and Outline Tolerance: +/-0.25mm
Surface Treatment: ENIG, Gold Plating, HAL, Plating Pb-Sn
Technical parameter as follow.
Flexible PCB
Layers: 1-6 Layers
Min. Line Width: 0.05mm
Min. Hole Size: 0.15mm PTH
Min. PTH Hole Ring: 0.45mm
Min. Gap between Cover Layer and Pad: 0.1mm
Min. Gap between Trace and Outline: 0.2mm
Trace Width Tolerance: +/-0.03mm, W+/-30%
Outline Tolerance: +/-0.05mm L≤ 25mm
Hole Size Tolerance: +/-0.05mm
Stiffener and Outline Tolerance: +/-0.25mm
Surface Treatment: ENIG, Gold Plating, HAL, Plating Pb-Sn
- Place of Origin:
- China
- Brand:
- Follow Dreams Technology
- Price Terms:
- EXW China
- Payment Terms:
- T/T
- Delivery Time:
- 3 days
- Min Order Quantity:
- 1pc
- Keywords:
- flexible pcb, single-sided fpc, multilayer fpc
