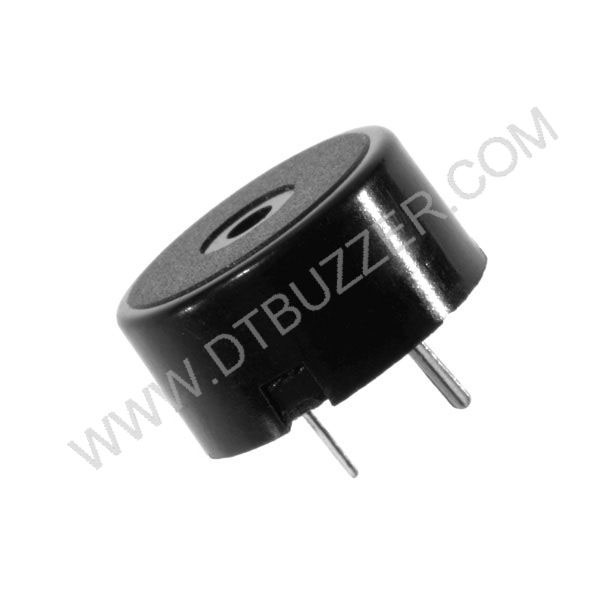

Piezo Buzzer 17mm External Drive 4.0khz
Piezo Buzzer 17mm External Drive 4.0khzItem Code / Model Number:
Piezo Buzzer 17mm External Drive 4.0khz
Sound pressure level 85dB min (5.0Vp-p Squase Wave /10cm)
Max Operating voltage 30Vp-p
Electrostatic capacity Co 15000PF +/- 30%
Max consumption 1.5mA Max
Resonant frequency Fr 4000+/-500Hz
Case material and colour PBT (BLACK)
Operating tem. Range -20 to +70 centigrade
Storage temperature -30 to +80 centigrade
Terminal pins
Weight 1.5gram
Max Operating voltage 30Vp-p
Electrostatic capacity Co 15000PF +/- 30%
Max consumption 1.5mA Max
Resonant frequency Fr 4000+/-500Hz
Case material and colour PBT (BLACK)
Operating tem. Range -20 to +70 centigrade
Storage temperature -30 to +80 centigrade
Terminal pins
Weight 1.5gram
- Place of Origin:
- China
- Brand:
- Dt
- Unit Price:
- USD 0.12
- Price Terms:
- FOB Guangzhou
- Other Price Terms:
- SHENZHEN
- Packing:
- 100 per lot
- Payment Terms:
- T/T
- Delivery Time:
- 15-30 days
- Min Order Quantity:
- 500
- Standard / Certificates:
- ISO9000
- Keywords:
- piezo, buzzer, 17mm
