Special Capacitor - I.g.b.t Snubber Capacitors
Special Capacitor - I.g.b.t Snubber CapacitorsContinuous Selling Item
Special Capacitor - I.g.b.t Snubber Capacitors

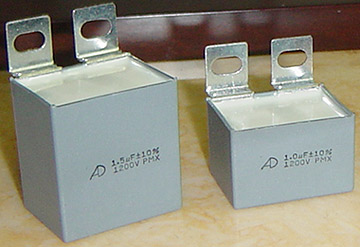

IGBT Snubber Capacitor
Main Application: Switching capacitor for resonant circuits, industrial and motor speed controls, induction heaters, high frequency and high current applications.
Dielectric: Polypropylene film
Construction: Extended double side metallied carrier film with internal series connection and metalized film
Case & Coating: Solvent resistant plastic case with resin sealing. Flame retardant execution(UL94V-0)
Leads: Tinned copper lugs for screw fixing or soldering on PCBS.
Installation: Whatever position assuring correct heat dissipation. Arrangement of many components with box walls in contact not admitted; suggested minimum distance between side by side elements ≧ 1/8 of the box thickness. Box with lugs terminals must be free to correctly dissipate from all the body faces.
Reference standard: IEC61071, IEC 60068, ROHS compliant
Main Application: Switching capacitor for resonant circuits, industrial and motor speed controls, induction heaters, high frequency and high current applications.
Dielectric: Polypropylene film
Construction: Extended double side metallied carrier film with internal series connection and metalized film
Case & Coating: Solvent resistant plastic case with resin sealing. Flame retardant execution(UL94V-0)
Leads: Tinned copper lugs for screw fixing or soldering on PCBS.
Installation: Whatever position assuring correct heat dissipation. Arrangement of many components with box walls in contact not admitted; suggested minimum distance between side by side elements ≧ 1/8 of the box thickness. Box with lugs terminals must be free to correctly dissipate from all the body faces.
Reference standard: IEC61071, IEC 60068, ROHS compliant
