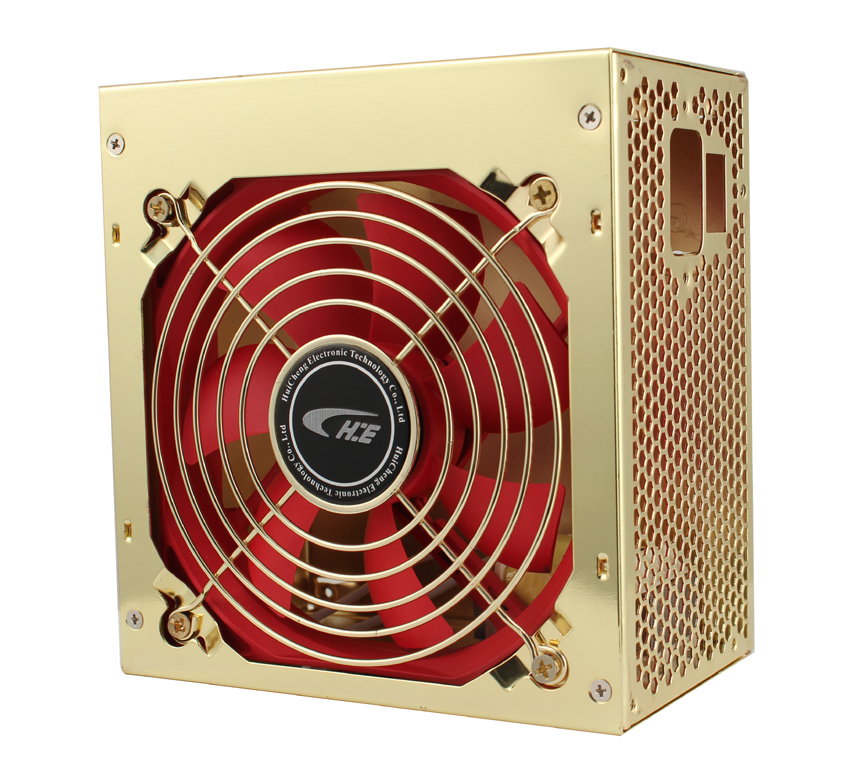

ATX power supply-B
ATX power supply-B, 8504401300Item Code / Model Number:
8504401300
ATX power supply-B
Max. power: 300~600W
Passive PFC (optional)
Input Voltage: 90~135Vac/ 180V~264Vac, switch selectable
Frequency: 47~63 Hz
Input current: 6A max.
Typical efficiency: >81%
With inrush current limit
Dimensions:150*85*140mm (W* H* L)
Dual forward circuit design with magnetic amplifier
Comply with Intel ATX 12V 2.3
8cm and 12cm fan (optional)
Protected by: OCP(optional), OVP, UVP, SCP, OTP(optional), OPP
Special insect protection design
With thermal control circuit
With Green ASIC, meet Erp lot 6:2010 and upgrade to 3A output capacity
With 12V rails, up to 86% power available on
MTBF: 100k hours
Passive PFC (optional)
Input Voltage: 90~135Vac/ 180V~264Vac, switch selectable
Frequency: 47~63 Hz
Input current: 6A max.
Typical efficiency: >81%
With inrush current limit
Dimensions:150*85*140mm (W* H* L)
Dual forward circuit design with magnetic amplifier
Comply with Intel ATX 12V 2.3
8cm and 12cm fan (optional)
Protected by: OCP(optional), OVP, UVP, SCP, OTP(optional), OPP
Special insect protection design
With thermal control circuit
With Green ASIC, meet Erp lot 6:2010 and upgrade to 3A output capacity
With 12V rails, up to 86% power available on
MTBF: 100k hours
