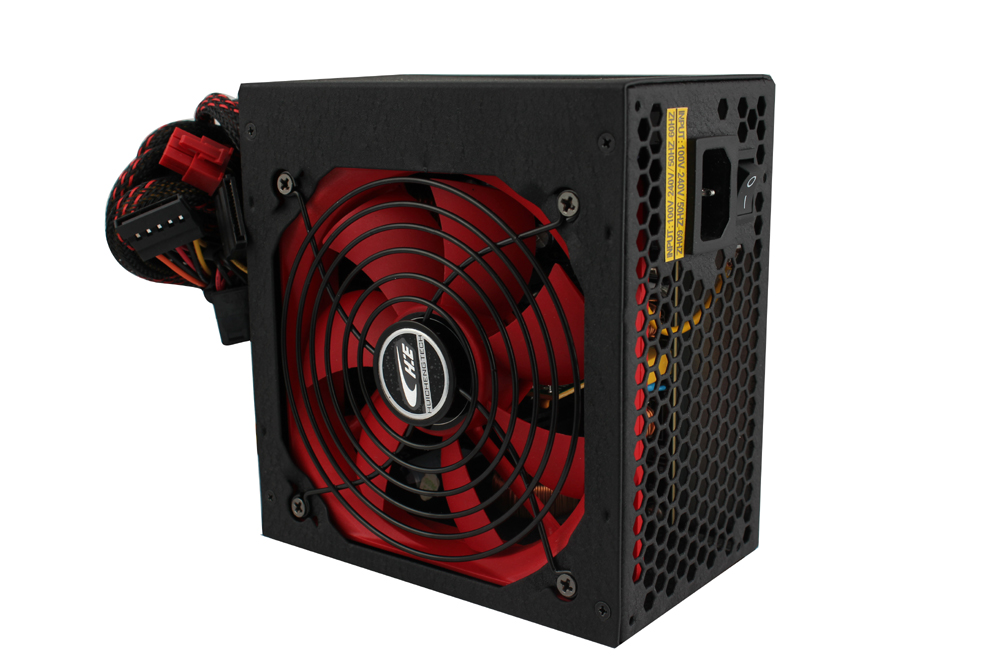

Atx Power Supply-h

Max. power: 300~600W
Input voltage: full voltage:90~264Vac/ single voltage: 180-264Vac (optional)
Frequency: 47~63 Hz
Input current: 8A max.
Efficiency: >85%
With inrush current limit
Dimensions:150*85*140mm (W* H* L)
Dual forward circuit design with magnetic amplifier
Comply with Intel ATX 12V 2.3
12cm fan speed control function inside, quiet and reliable cooling
With Green ASIC, meet Erp lot 6:2010 and upgrade to 3A output capacity
Protected by: OCP(optional), OVP, UVP, SCP, OTP (optional), OPP
With thermal control circuit
Special insect protection design
Up to 90% power available on at 12V rails
Low acoustic noise and ripple
Dual 12V rails ensure greater system stability
MTBF: 100k hours
Active PFC, with PF up to 0.95 for higher efficiency and less power grid pollution (optional)
80 plus bronze (optional)
