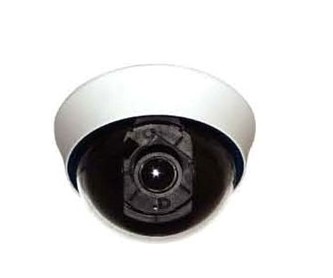

Color Dome Camera
Color Dome Camera, QXT-801A/QXT-801BItem Code / Model Number:
QXT-801A/QXT-801B
Color Dome Camera
Modle No.: QXT-801A/QXT-801B
Image Sensor: 1/3'Sony Super HAD CCD
Pixels(HXV): P:752(H)X582(V) N:768(H)X494(V)
Scanning System: PAL / NTSC
Horizontal Resolution: 540TVL/480TVL
Minimum lllumination: 0.001LUX / F1.2, 0.01LUX / F1.2
S/N Ratio: More than 50dB
Electronic Shutter: PAL:1/50s~1/100,000s NTSC:1/60s~1/100,000s
Standard Lens: 4-9mm
Gamma Correction: 0.45
Auto Gain Control: Auto
Auto White Balance: Auto
Back Light Compensation: Auto
Synchronous System: lntemational Synchronization
Video Output: 1.0Vp-p/ 75ヘ,BNC Connector
Power Supply: DC 12V
Power Consumption: 150mA/110mA
Operation Temperature: -20~+50
Dimensions (mm): í127mmX90mm
Weight (g): 215g
Material: ABS Plastic Cover
Image Sensor: 1/3'Sony Super HAD CCD
Pixels(HXV): P:752(H)X582(V) N:768(H)X494(V)
Scanning System: PAL / NTSC
Horizontal Resolution: 540TVL/480TVL
Minimum lllumination: 0.001LUX / F1.2, 0.01LUX / F1.2
S/N Ratio: More than 50dB
Electronic Shutter: PAL:1/50s~1/100,000s NTSC:1/60s~1/100,000s
Standard Lens: 4-9mm
Gamma Correction: 0.45
Auto Gain Control: Auto
Auto White Balance: Auto
Back Light Compensation: Auto
Synchronous System: lntemational Synchronization
Video Output: 1.0Vp-p/ 75ヘ,BNC Connector
Power Supply: DC 12V
Power Consumption: 150mA/110mA
Operation Temperature: -20~+50
Dimensions (mm): í127mmX90mm
Weight (g): 215g
Material: ABS Plastic Cover
- Place of Origin:
- China
- Brand:
- Qxtech
- Unit Price:
- USD 23
- Price Terms:
- FOB 27
- Packing:
- Standard color box/DIY
- Payment Terms:
- L/C;T/T
- Payment Remarks:
- Western Union,Paypal
- Delivery Time:
- 3 days
- Min Order Quantity:
- 1piece
- Standard / Certificates:
- CE,FCC,ROSH
- Keywords:
- color dome camera, dome camera, ccd dome camera
