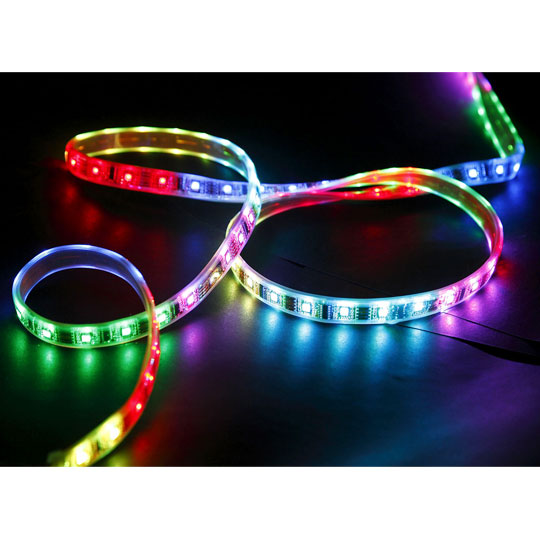

SMD5050 300LEDs Non-waterproof LED strip light
SMD5050 300LEDs Non-waterproof LED strip light, DSQ-FS5050NW-300RGBItem Code / Model Number:
DSQ-FS5050NW-300RGB
SMD5050 300LEDs Non-waterproof LED strip light
1, Product type: DSQ-FS5050NW-300RGB;
2, LED type:SMD5050 300LEDs;
3, Input voltage: DC 12V / 24V;
4, Power: Max 72W;
5, Driving mode: Constant power driven;
6, Color: RGB;
7, Luminance flux (LM): R (300)/G(960)/B(240);
8, Wave length range(nm or K): R (620~635)/G(520~525)/B(465~470);
9, LED brand: Epistar(Taiwan);
10,Working life :>50000 H;
11,Angle(2θ1/2) : ≥120°;
12,LED QTY(pcs/reel): 300pcs;
13,Working temperature : -40℃ ~ +60℃;
14,Store temperature: -50℃ ~ +80℃;
15,Certification: CE, RoHS;
16,Size(mm): 5000*12*7;
17,IP grade: IP33;
18,Interface: UL1007, Black/Red/Green/Blue wire for input port, Black for V+,Red for R, Green for G, Blue for B.
2, LED type:SMD5050 300LEDs;
3, Input voltage: DC 12V / 24V;
4, Power: Max 72W;
5, Driving mode: Constant power driven;
6, Color: RGB;
7, Luminance flux (LM): R (300)/G(960)/B(240);
8, Wave length range(nm or K): R (620~635)/G(520~525)/B(465~470);
9, LED brand: Epistar(Taiwan);
10,Working life :>50000 H;
11,Angle(2θ1/2) : ≥120°;
12,LED QTY(pcs/reel): 300pcs;
13,Working temperature : -40℃ ~ +60℃;
14,Store temperature: -50℃ ~ +80℃;
15,Certification: CE, RoHS;
16,Size(mm): 5000*12*7;
17,IP grade: IP33;
18,Interface: UL1007, Black/Red/Green/Blue wire for input port, Black for V+,Red for R, Green for G, Blue for B.
- Place of Origin:
- china
- Brand:
- DSQ
- Packing:
- 1. 5M for one reel, then put to vacuum aluminum foil bag. 2. 30 reels in one master carton, 150M in all. 3. Net Weight: 3 ±10% Kg 4. Gross Weight: 4 ±10% Kg
- Payment Terms:
- L/C;T/T;D/P
- Delivery Time:
- 10-15 days
- Min Order Quantity:
- 100M
- Standard / Certificates:
- FC/CE/RoHS
- Keywords:
- led strip light, led flexible strip, led lighting
