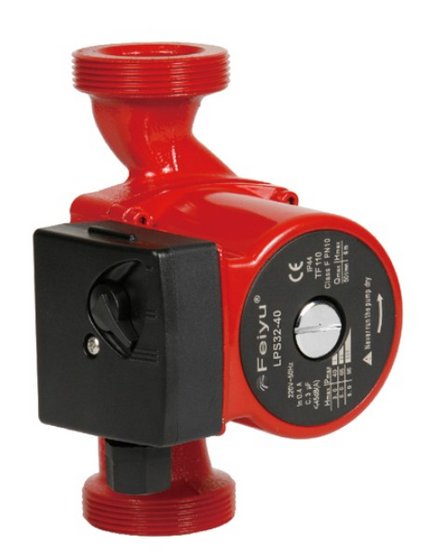

Circulator Pump FPS32-40 180

Circulator Pump FPS32-40 180, FPS32-40 180
Item Code / Model Number:
FPS32-40 180

Circulator Pump FPS32-40 180 Circulator Pump FPS32-40 180
Circulator Pumps
Model No: FPS32-40 180

Materials
1) Motor Wire: Copper
2) Rotor can: Stainless steel
3) Impeller: PP
4) Shaft: Ceramic
5) Pump body: Cast iron
6) Bearing: Ceramic
7) Back Plate: Stainless steel

Liquid:
1) Liquid temperature range: 0 - 100C

Installation:
1) Size, pipe connection: G2", DN32mm
2) Port to Port length: 180mm
3) Max. Operating pressure: 6bar
4) Pressure stage, pipe connection: PN6

Flow and head:
1) Max. Flow: 50L/min
2) Max. Head: 4m

Electrical data:
1) Power input (speed 1): 46W
2) Power input (speed 2): 67W
3) Power input max.: 95W
4) Mains frequency: 50Hz
5) Rated voltage: 220V
6) Max. Current: 0.4A
7) Capacitor size: 3uf

Packing:
N. W.: 3.1kg
G. W.: 3.3kg
Dimensions: 200 x 140 x 150mm

Accessories: Two Iron Unions, Two Gaskets.
  • Place of Origin:
  • China
  • Brand:
  • FEIYU, OEM
  • Packing:
  • 8pcs/ctn
  • Payment Terms:
  • L/C;T/T
  • Delivery Time:
  • 20-30 days
  • Min Order Quantity:
  • 300
  • Keywords:
  • single-stage pump, centrifugal pump, water
