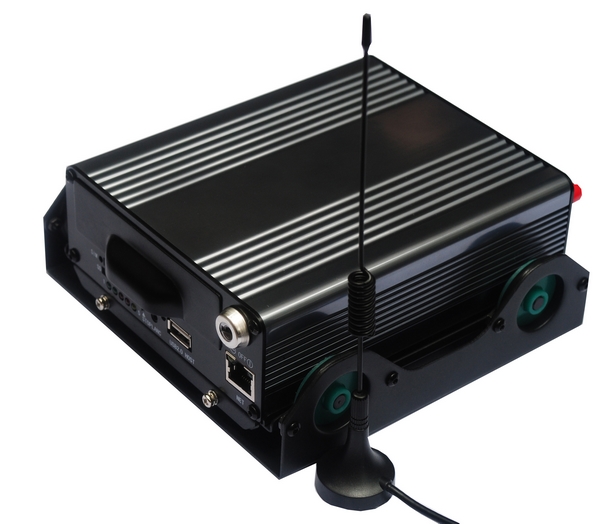

Hdd 3g Mobile Dvr With Gps

Mini WIFI DVR H.264 video compression support USB external storage for car

Detailed Product Description



* H.264 Vehicle DVR, the latest technology with 720p high resolution

* Dual anti-vibration design to protect the equipment and HDD inside

* Built-in 3g module, enable real time monitoring from remote devices

* GPS available, real time positioning can be achieved through 3G signal (Google Map)

* Sensor & alarm system/ IO output, protect the car from thieves, damages etc

*Full D1 for each channel

*WAN and Wifi are available



Main description



1) 4 channel video and audio recording
2) D1 resolution for each channel (704x576)
3) Up to mega-pixel for 4 channel (1280x1024)*30fps(NTSC)
4) Built- in GPS module (Google Map tracking)
5) Built-in WAN Port, WAN is available
6) Support external WIFI
7) Storage HDD, SD card, USB port (external storage supported)
8) Dual anti-vibration patent design
9) H.264 video compression
10) Motion detection / timer switch / alarm recording
11) Sensors & Alarm
12) Record vehicle speed and car ID synchronization with video and audio
13) Power: DC 8—32V
14) Net Weight: 1.5KG.
15) Size: 150mm x 150mm x 62mm
16) Language: Chinese/Spanish/Portuguese/English/Japanese/Korean/Russian etc, can be OEM to other language for big order
17) Sensor detection & alarm; Can be set up for brake, overspeed, door, draw back etc.
18) Panic button set & alarm.
19) Compact size, much easier for installation
20) CE, FCC and RoHS certification.



Application

1. Help the investigation of the scene for traffic accident

2. Gather evidence for violent crimes (blackmail and robbery)

3. Facilitate the management of company vehicles (GPS positioning)

4. Full view backing-car function

5. Sensor & alarm

6. Home security (CCTV)
