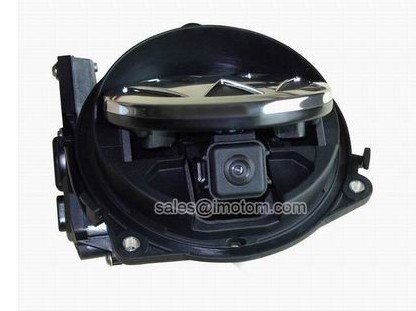

Volkswagen Golf ,Eos Rear View Camera With Built-in Ipas Function
Volkswagen Golf ,Eos Rear View Camera With Built-in Ipas Function, MT8001Item Code / Model Number:
MT8001
Volkswagen Golf ,Eos Rear View Camera With Built-in Ipas Function
Compatibility:GolfGolf Gti / GTD / RGolf PlusGolf EstatePassat SaloonPassat EstatePassat CCSciroccoTiguanTouareg
there are 4 types can be choice.
1,pop up logo camera with RCA output.(2012)
2,pop up logo camera with RGB original connector. (2013 NEW)
3,pop up logo built-in IPAS camera with RCA output.(2013 NEW)
4,pop up logo built-in IPAS camera with RGB original connector.(2013 NEW)
Fit cars:VW series and Skoda series.
Key Specifications/Special Features:
Images sensor: CMOS
Power supply: 12V DC ±1V
Current consumption: 150mA (maximum)
Power: 1.8W (maximum)
Effective pixels: 728 x 582/728 x 512 pixels
Electronic shutter speed:
NTSC: 1/60 to 1/10,000 seconds
PAL: 1/50 to 1/10,000 seconds
Minimum illumination: 0.1 Lux
S/N ratio: ≥48dB
Resolution: 480TVL
TV system: PAL/NTSC
Lens angle: 170°
Video output: 1.0vp-p, 75 Ohms
IP rating: IP67
White balance: auto
AGC: auto
BLC: auto
Operating temperature: -30 to +70°C (95% RH maximum)
there are 4 types can be choice.
1,pop up logo camera with RCA output.(2012)
2,pop up logo camera with RGB original connector. (2013 NEW)
3,pop up logo built-in IPAS camera with RCA output.(2013 NEW)
4,pop up logo built-in IPAS camera with RGB original connector.(2013 NEW)
Fit cars:VW series and Skoda series.
Key Specifications/Special Features:
Images sensor: CMOS
Power supply: 12V DC ±1V
Current consumption: 150mA (maximum)
Power: 1.8W (maximum)
Effective pixels: 728 x 582/728 x 512 pixels
Electronic shutter speed:
NTSC: 1/60 to 1/10,000 seconds
PAL: 1/50 to 1/10,000 seconds
Minimum illumination: 0.1 Lux
S/N ratio: ≥48dB
Resolution: 480TVL
TV system: PAL/NTSC
Lens angle: 170°
Video output: 1.0vp-p, 75 Ohms
IP rating: IP67
White balance: auto
AGC: auto
BLC: auto
Operating temperature: -30 to +70°C (95% RH maximum)
- Place of Origin:
- China
- Unit Price:
- USD 200
- Price Terms:
- EXW Guangzhou
- Other Price Terms:
- exw
- Packing:
- carton box with foam and instructionis inside.
- Payment Terms:
- T/T;Cash
- Payment Remarks:
- westen union
- Delivery Time:
- 1 days
- Min Order Quantity:
- 1 set
- Standard / Certificates:
- CE and RHOS
- Keywords:
- rear view camera, back up camera, vehicle park system
