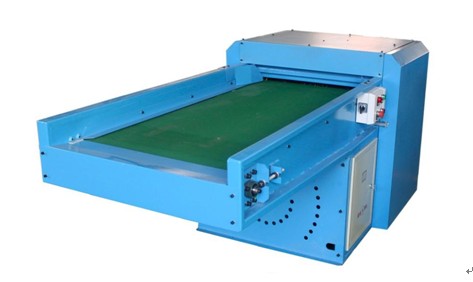

Polyester Fiber Opening Machine
Polyester Fiber Opening Machine, T01ABCItem Code / Model Number:
T01ABC
Item no.: T01A T01B T01C
Dimension 1810*1010*1010mm 2280*1100*1010mm 2400*1310*1010mm
Voltage 380V 50Hz 3phase 380V 50Hz 3phase 380v 50Hz 3phase
Power 6.25KW 6.25kw 8.25kw
Capacity 200-250kg/h 280-320kg/h 400-450kg/h
Opening rate 98% up 98% up 98% up
Weight 540kg 650kg 780kg
The fiber-opening machine is mainly used for opening conjugate hollow siliconized polyester fiber that short than 100mm length.
Automatic raw material feeding conveyer function is to send the material into the opening rollers automatically, so that assures the operators safety.
There is a track device under the conveyer and fixed into the roller edge, so that the conveyer can be running in a straight way without deviation damage.
The developed rollers are assembled with metallic V-wire that the fiber can be opened for more than 98% to 100% and not be damaged.
High opening capacity that can be 150kg to 450kg per hour according to different machine model and the material
Roller balance processing
Overload protection.
Dimension 1810*1010*1010mm 2280*1100*1010mm 2400*1310*1010mm
Voltage 380V 50Hz 3phase 380V 50Hz 3phase 380v 50Hz 3phase
Power 6.25KW 6.25kw 8.25kw
Capacity 200-250kg/h 280-320kg/h 400-450kg/h
Opening rate 98% up 98% up 98% up
Weight 540kg 650kg 780kg
The fiber-opening machine is mainly used for opening conjugate hollow siliconized polyester fiber that short than 100mm length.
Automatic raw material feeding conveyer function is to send the material into the opening rollers automatically, so that assures the operators safety.
There is a track device under the conveyer and fixed into the roller edge, so that the conveyer can be running in a straight way without deviation damage.
The developed rollers are assembled with metallic V-wire that the fiber can be opened for more than 98% to 100% and not be damaged.
High opening capacity that can be 150kg to 450kg per hour according to different machine model and the material
Roller balance processing
Overload protection.
- Place of Origin:
- China
- Brand:
- Lion
- Price Terms:
- FOB Qingdao
- Payment Terms:
- T/T
- Delivery Time:
- 40 days
- Min Order Quantity:
- 1set
- Standard / Certificates:
- CE CO
- Keywords:
- polyester fiber opening machine, ball fiber machine, fiber balls making
