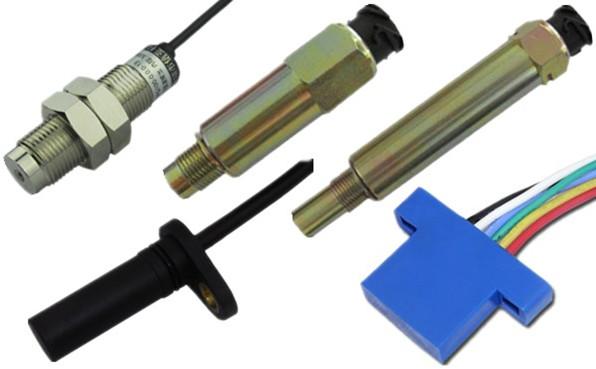

XYK-S-series speed sensor can precisely detect various shapes of the magnetic material gear or disk rotation speed, output stable square wave signal;
1. Non-contact principle, long service life;
2. Hard metal shell, fully sealed design, excellent resistance of water, oil and dust ability;
3. Wide temperature range, -40 to 150°, up to 180°;
4. The high thermal stability, strong anti-jamming capability, low-speed performance, the sensing distance long and don’t change along with the rotary speed of gear.

many types to choose:
1. Single pulse output type (speed detection)
2. Single-pulse differential output type (two pulse outputs, 180 °skew, long-distance transmission signal)
3. Dual pulses output type (speed detection and by reading the two pulses 90 degree skew to detect direction)
4. Dual pulses differential output type (four pulses output, AB phase difference 90 deg, the AA 'phase difference 180 deg, BB' phase difference 180 deg, A'B 'phase difference 90 deg)
5. Dual signals output (one output pulse signal to detect speed; the other one output high and low level-- --the forward and Reverse level are different, to judge the direction.)
6. Rotary direction detection (The rotation direction is judged by reading high and low electrical level corresponding to the forward and reverse rotation of the gear or disk)
7, Rotary direction judgment signal delay output (to detect the rotation direction of the gear and disk, forward or
reverse rotation output high level delay 60s turn to low one, the time can be customized)
8,.Dynamic detection sensor (the gear and magnetic disk rotation to output high level, stop outputing low level)
9. Sine wave output (two-wire, sine wave output, no power requirement)
XINYAK can provide one-to-one customized service according to your requirement.
Application:
1. Industrial control and automation areas: the machine tools,the metallurgy, chemical industry, textile machinery, printing and other industries. Our speed sensor can be used for spacing, counting,position control and automatic protection stages in the automatic control system, like the auto assembly line, electronic belt.
2. Vehicle speed detection: the motor of electric forklift trucks ,golf carts and other electric vehicles, the vehicle transmission, the ATV ,the motorcycle, the vehicle instrument.
