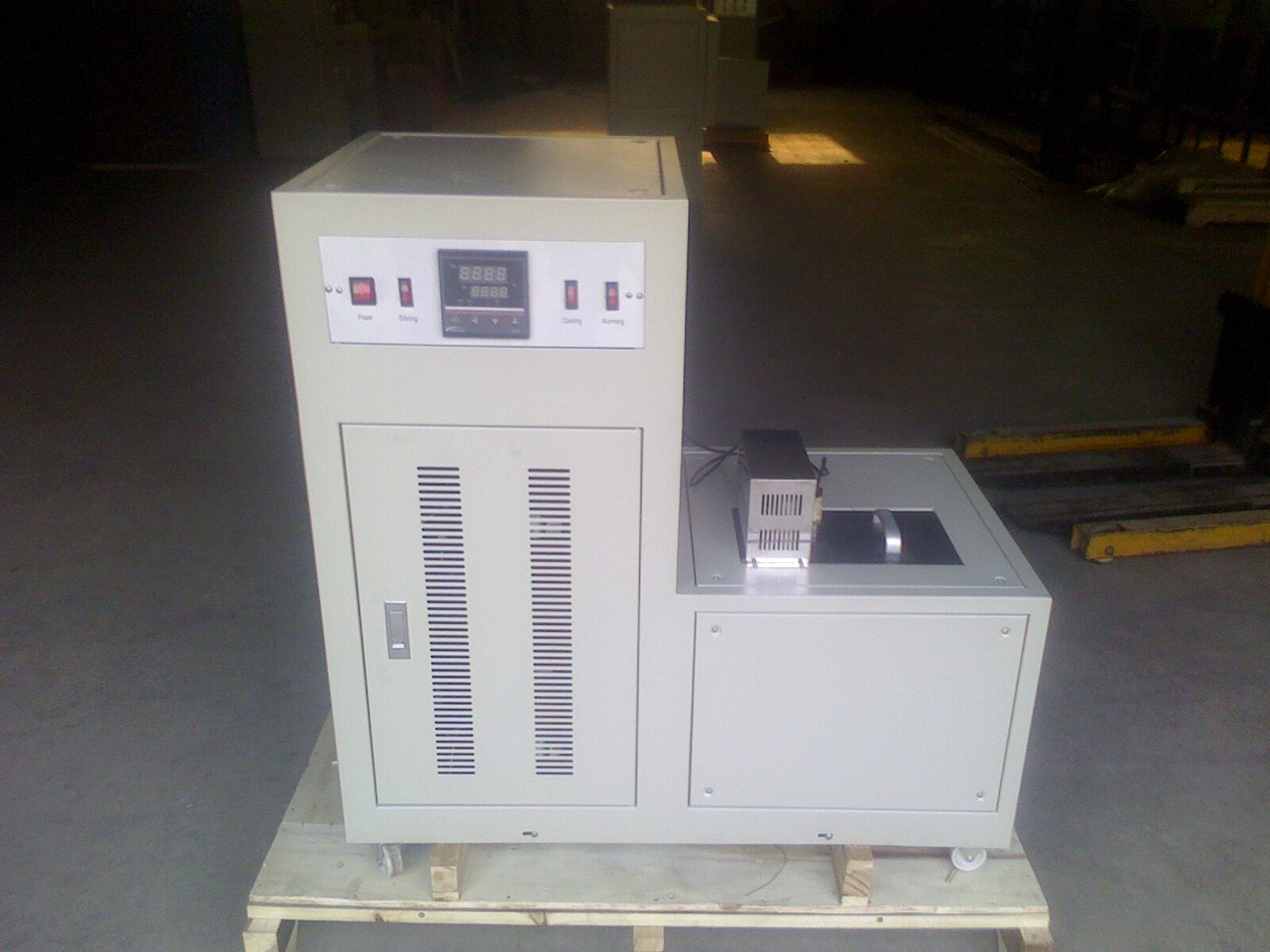

Cdw-30t Impact Test Low Temperature Chamber

1. Functions :CDW-30T Impact Test Low Temperature Chamber is a supplemental equipment for impact test under low temperature. It used to cool the sample automatically and uniformly, or keep constant temperature. .
2. Features:
1） A double compressor refrigeration technology
2） simple operation, high work efficiency,Digital display temperature value, safe and reliable
3） Use heat balance and circulation mixing principle, to cool the sample automatically and uniformly, or keep constant temperature
4） Can fully meet the national standards under the temperature control indicators
5） high security, refrigerate fast, large volume, high precision of temperature control
3. Applicable industries: used in low temperature impact test for The petroleum chemical industry, metallurgy, boiler and pressure vessel, steel plate, steel pipe, wind power generation, hardware, metal, casting, pump, valve, solar, ordnance, fasteners, diesel engine, electric power, iron tower, railway, ship, machinery manufacturing, automotive, aerospace, physical and chemical laboratory, scientific Research
4. Main Technical Parameter:
type CDW-30T Impact Test Low Temperature Chamber
Cooling range +30~-30°C (room temperature:≤25°C)
Constant temperature accuracy ±0.5°C
Cooling speed +30°C~0°C About 1.2°C/min
0°c~-20°C About 0.8°C/min
-20°C~-30°C About 0.5°C/min
Max. Dimension 900×505×850 mm
Available working place 150×505×240mm
Specimens amount 60 Digital timer 1min~99min(Resolution:1min)
Cooling medium alcohol or other unfrozen liquid
Stirring Motor 16w
Power supply 220V~240V, 50HZ, 7KW
Specimens basket amount 3
Weight About 50kg
5. we have achieve the certification of ASTM E23-02a、EN10045、ISO148、ISO083,and our product meet the standards of the GB229-2007 "Metallic materials---Charpy pendulum impact test method "
6. According to the customers’ requirements we can provide other types of low temperature impact testing machine.
