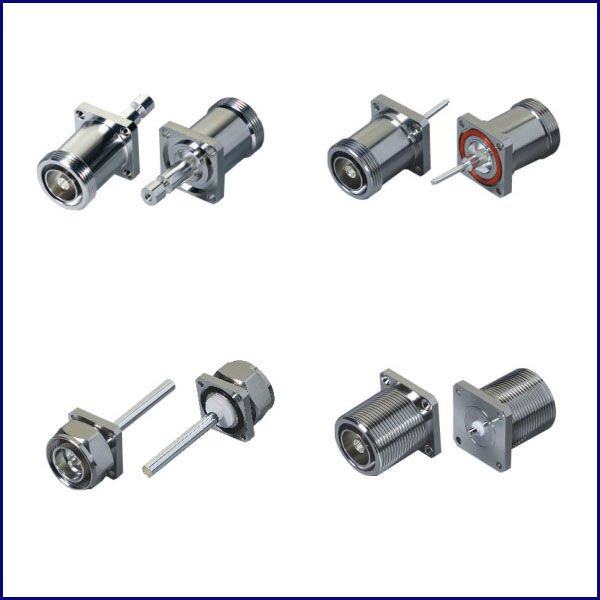

Din connector

Specification

characteristic Impedance 50Ω
frequency Range 0-7.5GHz
withstanding voltage ≥4000V,50Hz
working voltage 2500V,50Hz (sea level)
insulation resistance ≥10000mΩ
contact Resistance inner conductor ≤1.0mΩ
outer conductor ≤0.5mΩ
RF leakage(1GHZ) ≥128dB
IMD ≥160dBc

Performance description
Twinlink are able to R&D 7/16 tele-communication connector is a kind of thread connecting coaxial connector manufactured according to IEC169-4 and DIN 47223,and it is featured with low power consumption with high transmitting power .That series are most water proof structures,with applications in outdoor facilities,high power transportation lines,especially in prevailing use of the Antenna and cable system of microwave and mobile communication



Material facts

pin conductor brass--gold plated
body brass--ternary alloy (Cu+Zn+Sn)
plug phosphor bronze/beryllium copper--silver plated
crimping sleeve copper-- ternary alloy (Cu+Zn+Sn)
Insulator PTFE / PFA
sealing ring silica rubber

Customization available
1.Able to conduct surface dusting for 20 minutes in 200 centigrades
2.Twinlink proficient R*D team are ready to spring into action

Certificates
IEC169-4,SGS,RoHS,ISO9001:2008,ISO14001,IP68

How to order
To send us your specific engineering parameters such as IMD,V.S.W.R,plating,etc.And we will discuss with you about the details
