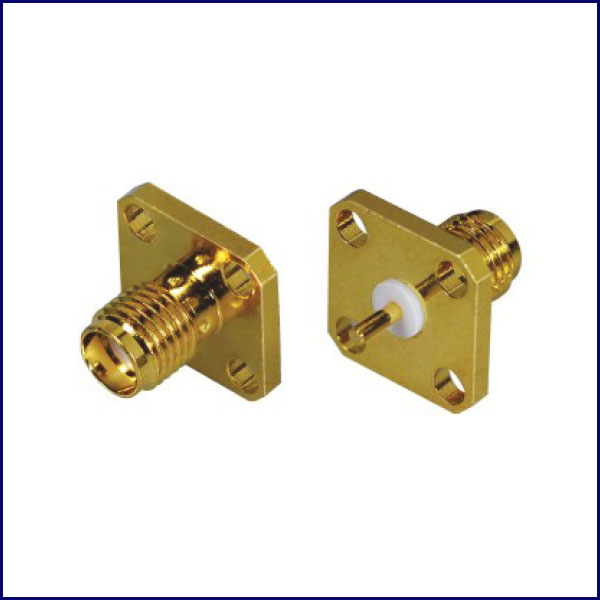

SMA female connector
SMA female connector
SMA female connector
Mechanical Characteristics
Characteristic Impedance: 50Ω
Frequency Range: 0-18GHz
Wishstanding Voltage: ≥750-1500V,50Hz
Working Voltage: ≥250-500V,50Hz (see level)
≥65-125V,50Hz (Height 21000M)
Insulation Resistance: 5000mΩ
Insulation Resistance: Inner conductor: ≤5mΩ
Outer conductor: ≤5mΩ
RF leakage(1GHZ): Flexible: ≥60dB
Semi-rigid cable: ≥70dB
Material
Pin conductor: Brass/Beryllium copper--Gold plated
Body / Outer conductor Beryllium copper--Gold plated
Stainless steel--Passivation
Brass--Gold plated / Ternary Alloy (Cu+Zn+Sn)
Phosphor bronze --Gold plated
Plug: Beryllium copper / Phosphor bronze--Gold plated
crimping sleeve: Brass--Gold plated
Insulator: PTFE / PFA
Sealing Silastic
Characteristic Impedance: 50Ω
Frequency Range: 0-18GHz
Wishstanding Voltage: ≥750-1500V,50Hz
Working Voltage: ≥250-500V,50Hz (see level)
≥65-125V,50Hz (Height 21000M)
Insulation Resistance: 5000mΩ
Insulation Resistance: Inner conductor: ≤5mΩ
Outer conductor: ≤5mΩ
RF leakage(1GHZ): Flexible: ≥60dB
Semi-rigid cable: ≥70dB
Material
Pin conductor: Brass/Beryllium copper--Gold plated
Body / Outer conductor Beryllium copper--Gold plated
Stainless steel--Passivation
Brass--Gold plated / Ternary Alloy (Cu+Zn+Sn)
Phosphor bronze --Gold plated
Plug: Beryllium copper / Phosphor bronze--Gold plated
crimping sleeve: Brass--Gold plated
Insulator: PTFE / PFA
Sealing Silastic
- Place of Origin:
- china
- Brand:
- twl
- Unit Price:
- USD 0.9
- Port:
- FOB shenzhen
- Packing:
- cartons or as per your request
- Payment Terms:
- ;T/T
- Delivery Time:
- 3-10
- Min Order Quantity:
- 500pcs
- Standard / Certificates:
- ISO9001 ISO14001 ROHS
