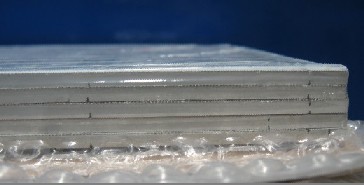

aluminum backed 2 layer PCB
aluminum backed 2 layer PCB, bic-121Item Code / Model Number:
bic-121
aluminum backed 2 layer PCB
1. Aluminum backed 2-layer, 510*155mm=10PCB
2. Thermal conductivity: 2.0W/mk.
3. 2 oz each layer, 3.3mm thick
4. White solder mask/ Black text
5. Lead free HASL
6. Plated through hole (PTH)
7. V-cut, 2.0mm slots
8. layer stack up
------copper 70μm (layer 1)
------dielectric thick 75μm
------copper 70μm (layer 2)
------dielectric thick 75μm
------aluminum base 3.0mm
2. Thermal conductivity: 2.0W/mk.
3. 2 oz each layer, 3.3mm thick
4. White solder mask/ Black text
5. Lead free HASL
6. Plated through hole (PTH)
7. V-cut, 2.0mm slots
8. layer stack up
------copper 70μm (layer 1)
------dielectric thick 75μm
------copper 70μm (layer 2)
------dielectric thick 75μm
------aluminum base 3.0mm
- Place of Origin:
- China
