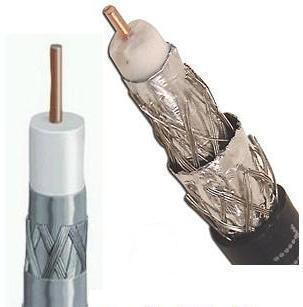

Coaxial Cable
Coaxial Cable, RG6Item Code / Model Number:
RG6
Coaxial Cable
RG-6U Coaxial Cable
Conductor: 0.8±0.02mm CCS
Insulation:4.8±0.15mm Foam PE,
Shield: AL Foil
Diameter:6.8±0.15mm Black Or White PVC
Braiding
ZX-020A: Braid 32X0.12mm CU (or CCA)
ZX-020B: Braid 48X0.12mm CU (or CCA)
ZX-020C: Braid 64X0.12mm CU (or CCA)
ZX-020D: Braid 80X0.12mm CU (or CCA)
ZX-020E: Braid 96X0.12mm CU (or CCA)
Characteristic Impedance: 75 OHM
Application:
Mainly applicable to the usage of optical line and equipment in communication business of connecting, transmission telephone and TV. The operation frequency range for coaxial cable is 5-1000MHz .
Service on lineLink DESIGNED BY WANHU.
Conductor: 0.8±0.02mm CCS
Insulation:4.8±0.15mm Foam PE,
Shield: AL Foil
Diameter:6.8±0.15mm Black Or White PVC
Braiding
ZX-020A: Braid 32X0.12mm CU (or CCA)
ZX-020B: Braid 48X0.12mm CU (or CCA)
ZX-020C: Braid 64X0.12mm CU (or CCA)
ZX-020D: Braid 80X0.12mm CU (or CCA)
ZX-020E: Braid 96X0.12mm CU (or CCA)
Characteristic Impedance: 75 OHM
Application:
Mainly applicable to the usage of optical line and equipment in communication business of connecting, transmission telephone and TV. The operation frequency range for coaxial cable is 5-1000MHz .
Service on lineLink DESIGNED BY WANHU.
- Place of Origin:
- Foshan
- Brand:
- Zexun
- Price Terms:
- FOB Foshan
- Packing:
- 100m or 305m per roll
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 30 days
- Keywords:
- coaxial cable rg6, cables, telecommunication coaxial cable
