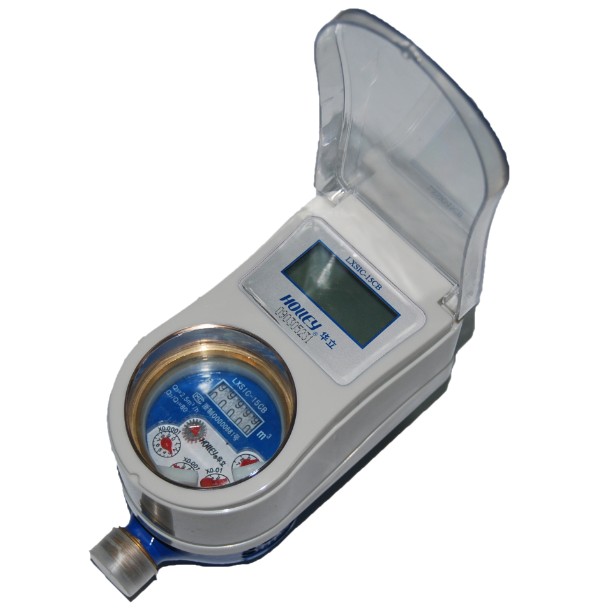

IC Card Prepaid Water Meter

HOLLEY
WATER METERS
HL-CB2
IC PREPAID
Water Meter

GENERAL:
• Cash in advance payment
• Complete management of the water consumption
• Elimination of meter reading process
• Easy analysis of water consumption by rich reports on PC

• Saves great amount of time and meter reading human cost
• Suitable for cold water up to 30ºC
• Wet dial or dry dial for choice

FEATURES
• Multi-jet principle assures a long service time
• Electronic meter, mechanic wheel and LCD double display
•Small initial flow rate, high sensitivity
• Electrostatic painted body made of corrosion resistant brass
•Low battery voltage alarm, insufficient volume warning
•Self Check Valve/Internal clock circuit switches the valve regularly,
to prevent the valve rusting, plugging up et.
• Wide angle digital screen for easy reading
• Contact IC card usage ensures isolation against most external affects
• (For dry type) Inner magnetic filed shielding design
• No meter dismantling because of the debts
• Patent ball valve, low power consumption & pressure loss
•Special glass with high resistance of pressure and impact
•Sealed design, Superior waterproof performance, protect electronic circuit and mechanical meter
• Almost no maintenance • Non return valve & Inlet strainer optional
• All spare parts available, wide range of service network
• Setting up different tariffs feasible
• 2 years of warranty
• Long life lithium battery supplied
• ISO 4064 - 1 Certificate


DIMENSIONS
Caliber Length
L Length
L1 Width
B Height
H Connecting Thread LCD
Screen Length
DN mm d D mm
15 258 165 85 125.5 R1/2B G3/4B
46x20
20 298 195 85 125.5 R3/4B G1B
25 345 225 85 128 R1B R5/4B
