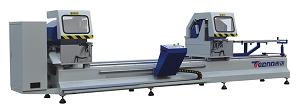

Aluminum Window And Door （curtain Wall）machine-cnc Double Mitre Saw

Introduction：
◎ Used for profiles such as aluminum profile and curtain wall, two heads cutting angle
90°45° 67.5° (22.5°) are available.
◎ Cutting dimension controlled by screw, with high accurate driving and locating. Right
head can achieve the setting location automatically. Right head feed the profiles
automatically; can also use for cutting aluminum connectors.
◎ Japan CNC system adopted, which include PLC, touched screen, servomotor, and
servodriver, photoelectrical switch, and photoelectrical cells etc. Complete Japan
CNC system results highaccuracy and smooth working.
◎ Uniform speed feeding and smooth motion due to air-draulic damping cylinder.
◎ Saw blade feeding system adopts imported linear guide kinematic pair results high
accuracy.
◎ Automatic protecting guards result convenience and safety.
Technical Parameter：
Model LJZ2-CNC-500×5000
Input voltage 380V/50Hz
Input power 6.0Kw
Air pressure 0.5~0.8MPa
Air consumption 200L/min
Motor rotation speed 2800r/min
Cutting length 400~5000mm
Cutting width 10~130mm
Cutting height 10~300mm
Cutting angle 90° 45° 67.5°
Saw feeding speed 0~3m/min
Saw blade standard φ500×4.4×φ30×Z120
Overall dimension 6300×1700×1600mm
