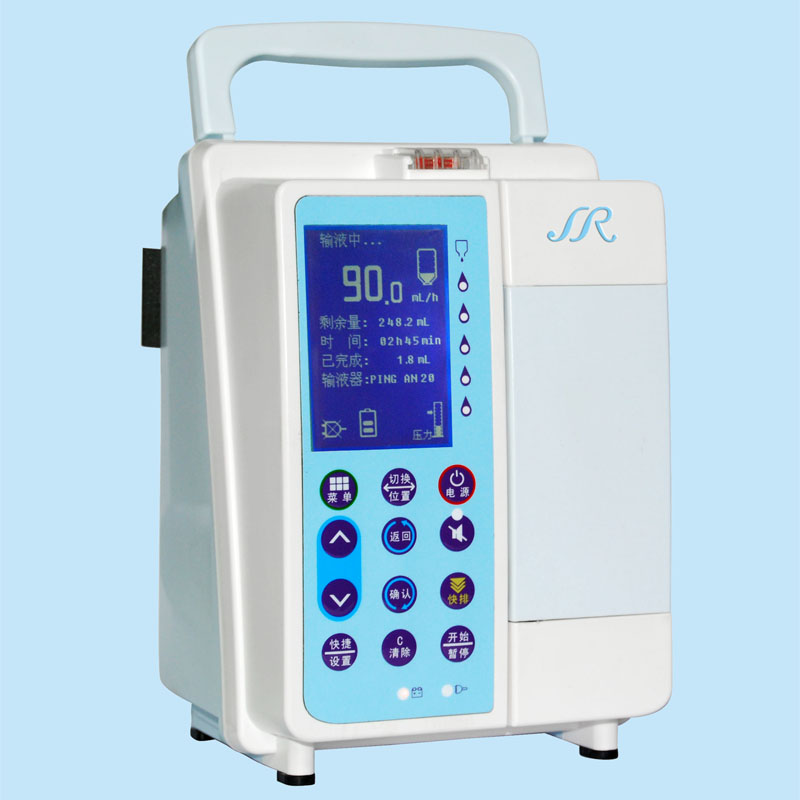

Infusion Pump

Machine Function
A dual-CPU control, the infusion process safer and more reliable.
2, anti-reverse function, which can effectively prevent the stepper motor due to interference and reversal.
3 refers to the peristaltic pump assembly removable, easy to clean, easy to maintain.
4, real-time self-test function when a component of the machine problems timely alarm.
5, real bubble detection, when bubbles detected infusion tube, the automatic stop and sound and light alarm, to prevent air bubbles from entering the human body.
6, the number of drops mode the to distinguish 20d/ml and 60d/ml infusion tube, infusion tube set does not match the actual use, automatic shutdown and audible and visual alarm.
7, real-time detection infusion tubing pressure changes automatically shut down when the upper end of the infusion tube caused by normal infusion due to poor air inlet or pipeline at the folding and sound and light alarm.
8, sound and light alarm function, various alarm to sound and light are two forms of alert and alarm information is displayed on the screen at the same time.
9, fast set quick set infusion parameters.
10 Bolus mode and drugs mode.
11, the user can add, delete, edit, 20 tube (including default casts).
12, the infusion process can easily dynamically adjust the infusion rate.
13 has lost empty, the liquid is lost to the bottles without the need to set a specific infusion capacity.
14, has a night mode, Night mode in operating the screen backlight automatically turns off after three minutes, the light water retaining only a flashing prompt.
15, battery-powered system to ensure that the equipment needs to be moved or AC power interruption to maintain a continuous infusion. [Full power is not greater than 90ml / h (30d/min) infusion rate of 7.0 hours].

Whole appearance Description
1, the movable handle for easy carrying, can not close up, to save space.
2, the position of the alarm lamp at the top, to facilitate the alarm signal can be seen around the prompts.
3, set the communication interface window protection, protection of the interface from dripping liquid erosion.
4, the number of drops induction interface, set aside a communication interface, can upgrade the access network.
5, large-size LCD screen, text interface, menu, and clear alarm; button panel graphics and text combined with each other, easy to operate, simple and efficient.
