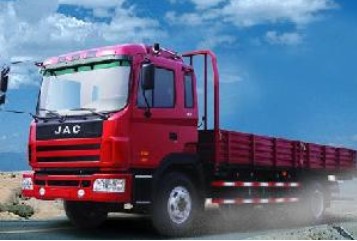

Jac Middle Truck 4*2 (hfc1130kr1)

Basic Info.





Model NO.:

HFC1130KR1



Additional Info.





Trademark:

JAC



Packing:

NUDE



Standard:

ISO9001: 2000



Origin:

CHINA



Production Capacity:

1000/month



Product Description

JAC Middle Truck 4*2

Model: HFC1130KR1
Drive mode: 4*2
Model: HFC1132KR1K3-G15B0
Engine Model: EQB210-20
Displacement(CC): 5900
Max output power(HP/rpm): 210HP/2500
Max torque (N. M/rpm): 700/1400-1600
Transmission Model: CA6T138-85
Clutch Mode: Single, dry plate, diaphragm, power assist
Rear axle Model: JAC 9T axle(5.571)
Overall Dimension (mm): 8980x2475x3060
Rear cargo dimension (mm): 6460x2300x550

Wheel base (mm): 5300
Tread (mm): 1920/1800
Curb weight (Kg): 6210
Rated payload (Kg): 9790
GVW (Kg): 16000
Max speed (Km/h): 105
Radius of turning (m): 10.3
Tire: 9.00R20
Steering system: Power Steering
Brake Mode: Double loop air brake
Conditioner: Yes
Half height roof cab: Yes
Guarantee provided
